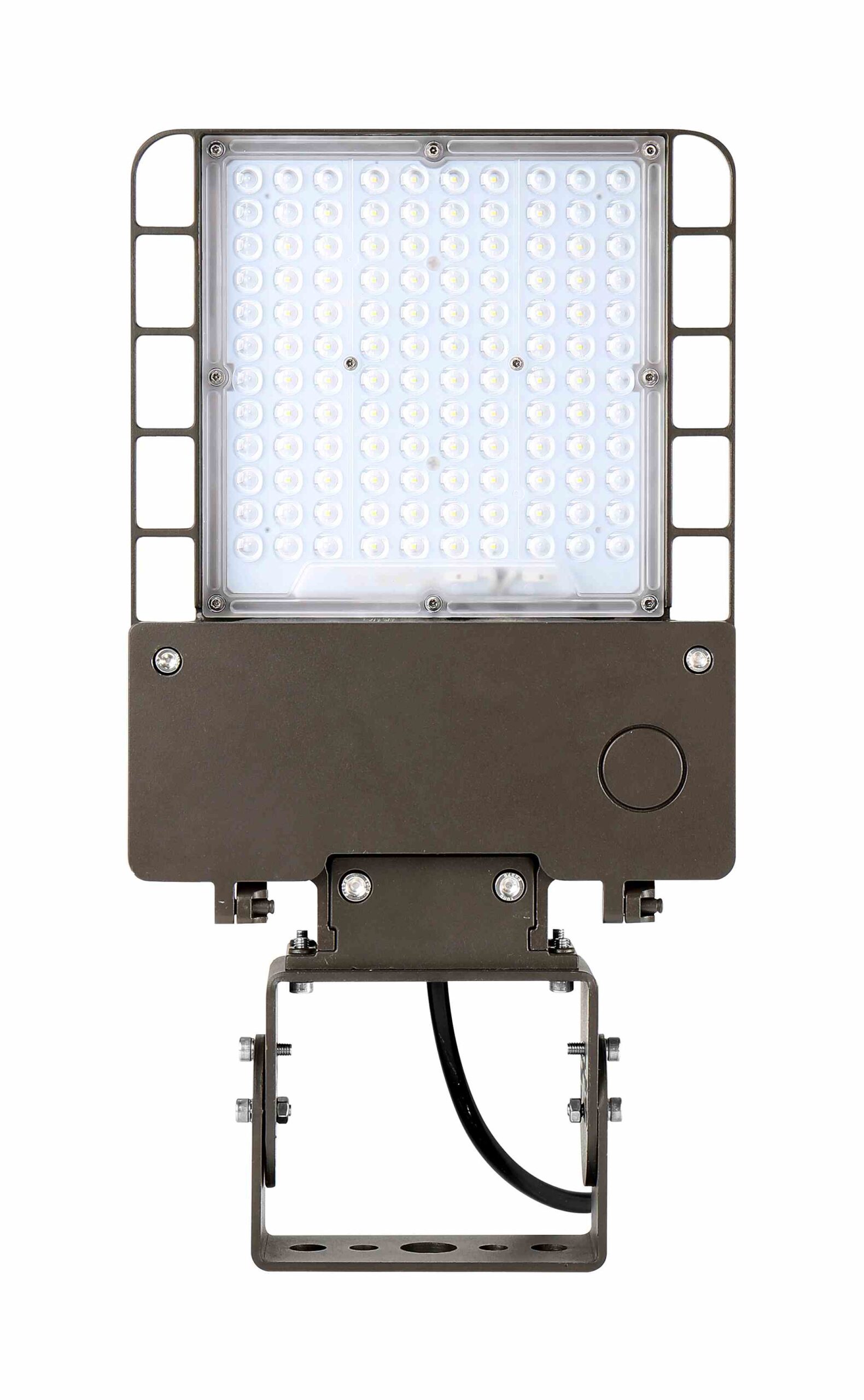

  • AL05-100W YOKE-FrontAL05-100W YOKE-Front

    LED Area Light (AL05)

    100W-150W-250W-300W
    Photocell and Motion Sensor Optional

    Inquire
    Category:

    Description

    • Rugged one-piece, die-cast aluminum housing optimized for thermal conductivity
    • Low profile, 3G vibration rated and compact design minimizes wind load requirements
    • Housing is completely sealed against moisture and environmental contamination
    • Various distribution patterns including Type Ⅲ and Type Ⅳ and Type Ⅴ
    • LED’s are vailable in standard 4000K and 5000K (70 C.R.I.) configurations
    • Scalable Lumen packages from 13,900 to 42,000 Lumens, replaces up to 1000W Metal Halide
    • Optics are precisely designed to shape the light distribution, while maximizing efficiencies and application spacing
    • To maximize light control, shields are optional. They can be factory or field installed.
    • Optics can conform to dark sky requirements
    • Photocell and motion sensor optional
    • Operating voltage is 120-277V / 347V-480V and supports 0-10V dimming
    • Surge protection is optional for 100W, but included with 150W, 250W and 300W
    • Fixtures are suitable for use in ambient temperatures from-40℃ to 40 ℃ (-40℉ to 104℉)
    • Suitable for mounting heights ranging from 26 – 50 feet in area lighting applications
    • Round pole, Square pole, Slip-fitter, Wall mount and Yoke mount are optional
    • Available in black, dark bronze, silvery gray and white
    • Expected service life is over 100,000 hour LED lifespan based on IES LM-80 results and TM-21 calculations
    • UL Listed for wet locations
    • Standard 5-year limited warranty
