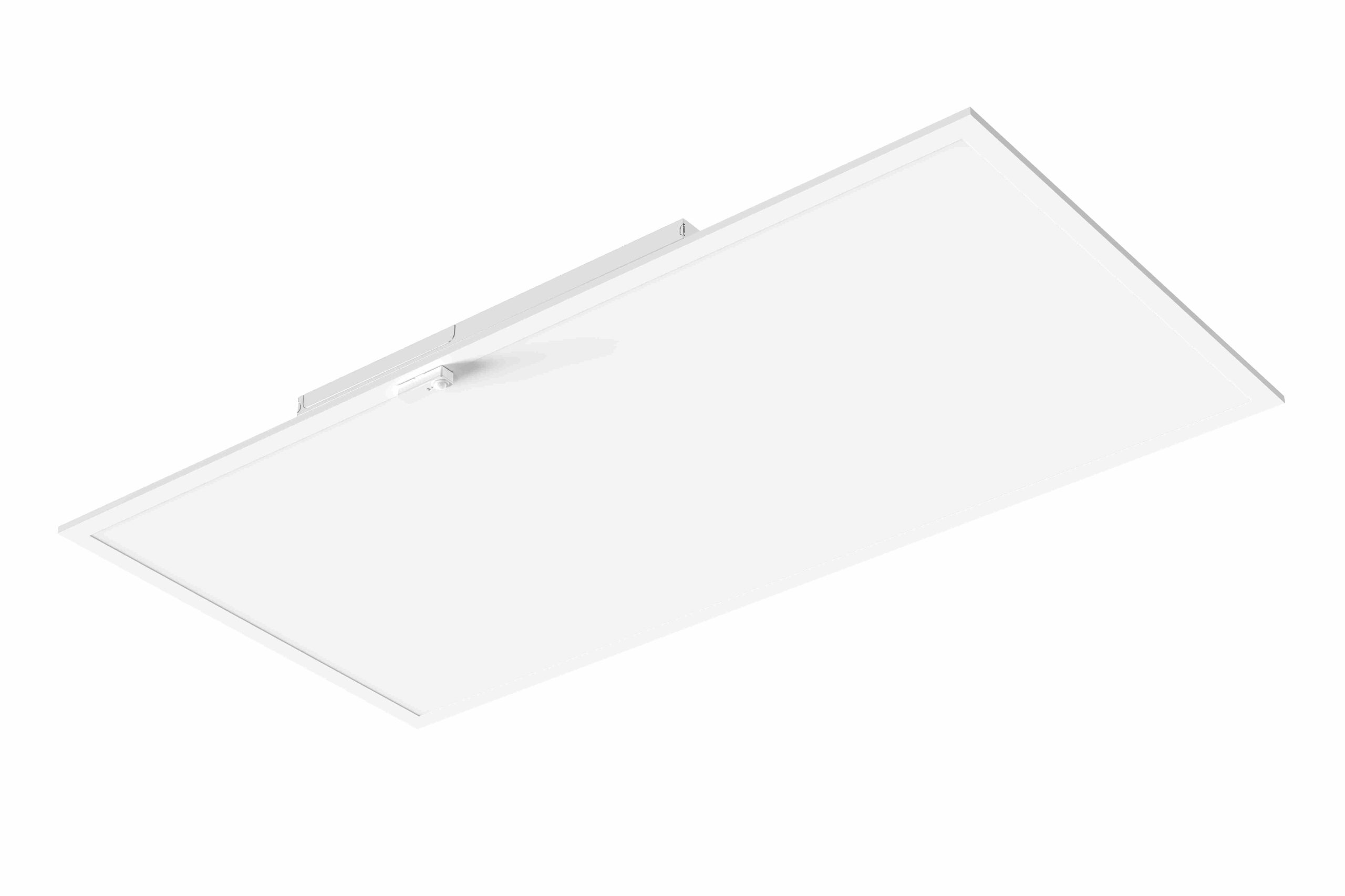

Description

• The aluminum frame enhances the perfect balance between lightweight design and uncompromising strength
• One piece housing to function as a heat sink to maximize the lifespan
• Standard T bar design to ensure the fixture easily locks onto the grid ceiling
• New backlit technology features optimal light distribution and uniform surface brightness
• Light engines are available in selectable CCT, (3500K/4000K/5000K) configurations
• Selectable Lumen Packages from 2,200 to 6,000 Lumens, replaces up to four T8 fluorescent lamps
• Universal 120-277VAC input voltage
• Optional 0-10V dimming and dimming range from 10% to 100%
• Three selectable Wattage levels available for each model
• Both drivers have a power factor >90%, THD <10%
• Flicker Percent <5%
• Operating Temperature Range: -17C to 45C (-1.7˚F to 113˚F)
• Surface Mount (default), Recessed and Suspended Optional
• Optional Occupancy sensor, Microwave sensor, Multifunction Sensor or daylight sensor
• Optional Bluetooth controls including Haisen, Silvair and Sharkward
• Luminaire Level Lighting Control (LLLC)
• Compatible with high end trim

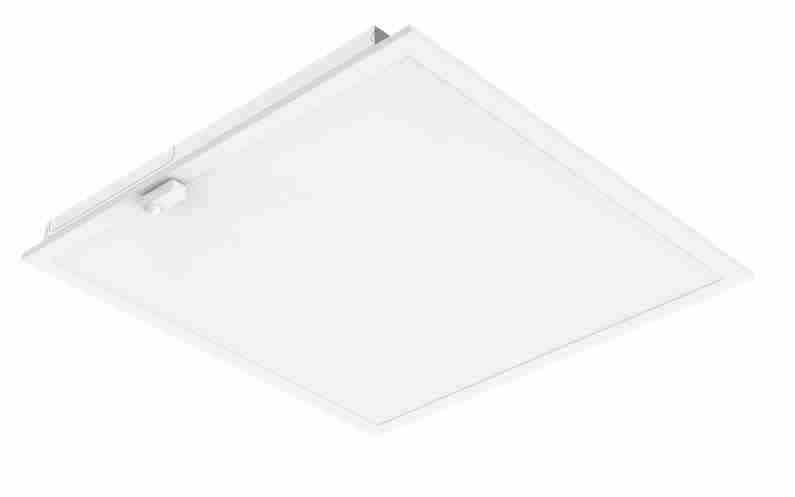

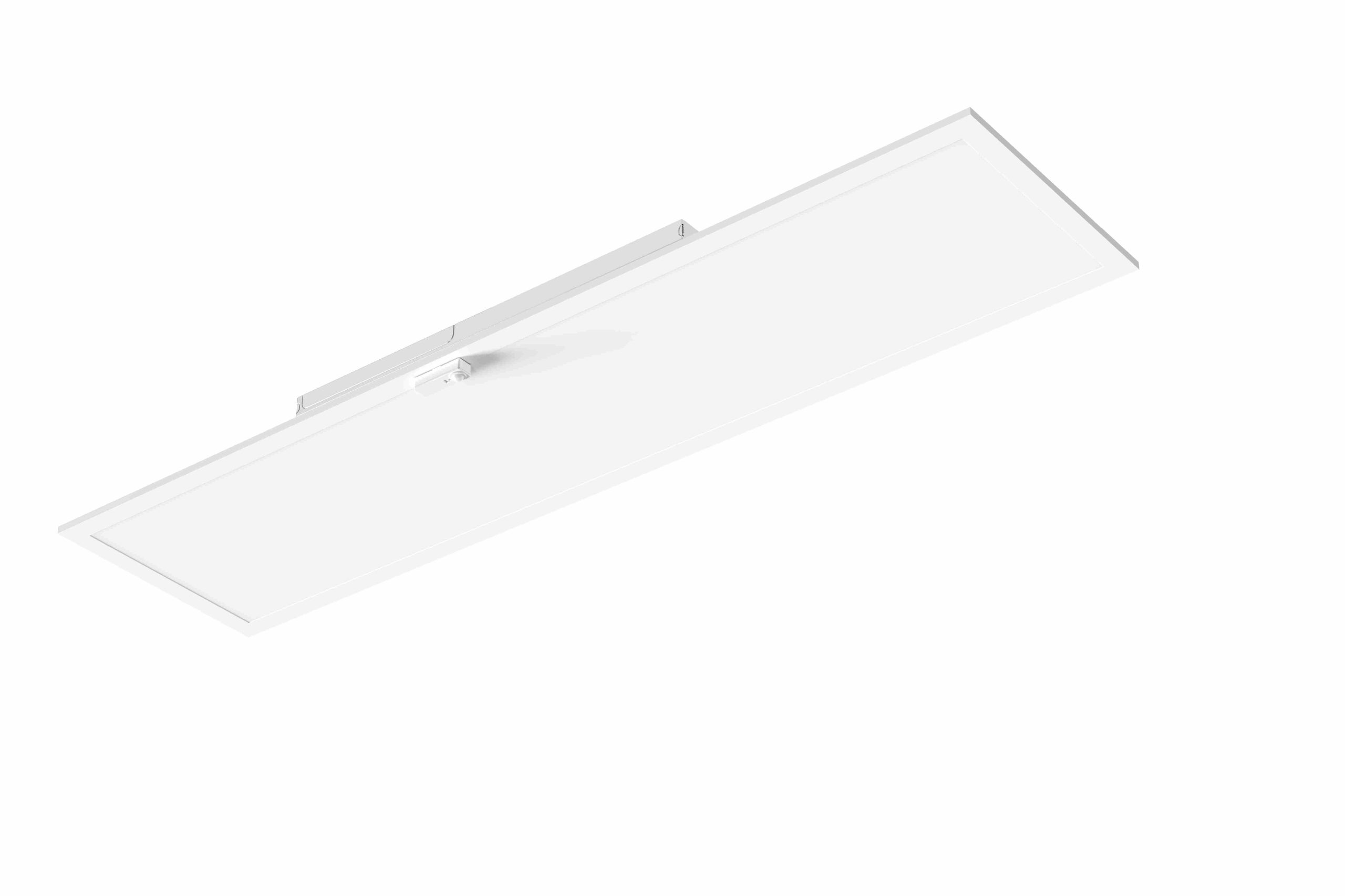

• Sensor receptacle optional
• Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Five Year Warranty
