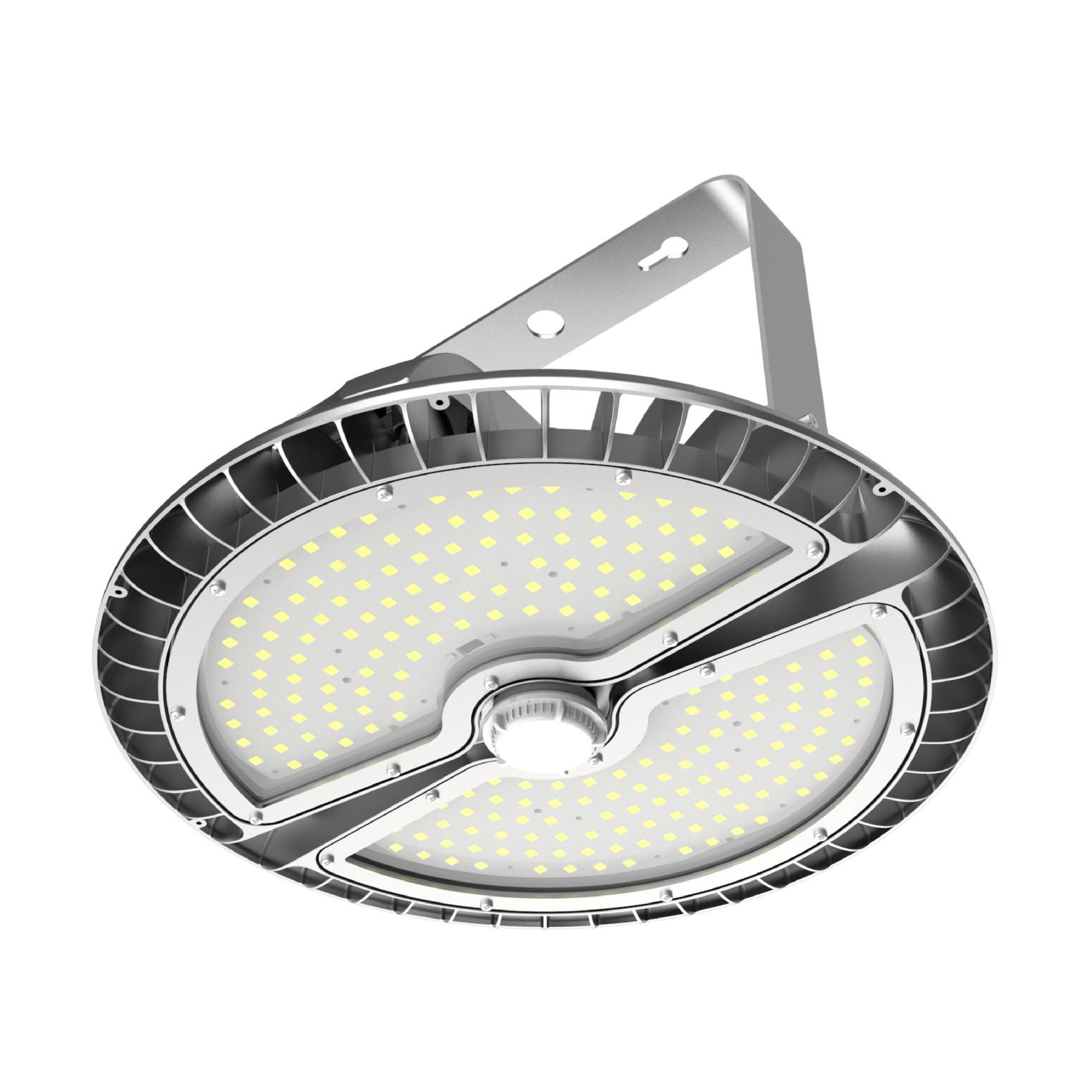

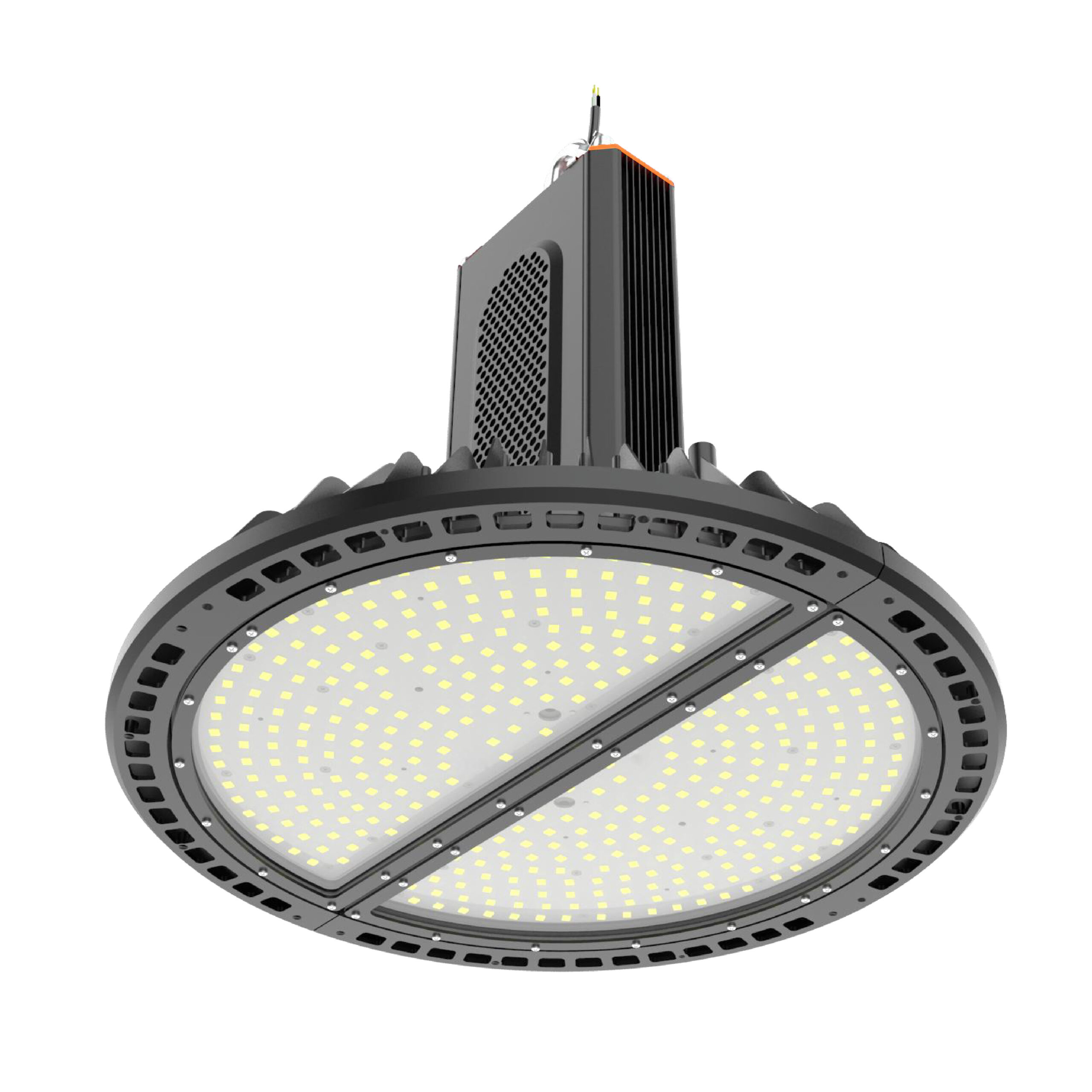

    HB10 LED High Bay

    High Temperature LED High Bay

    Operating Temperature up to 80°C

    Offers 100W, 150W,200W,240W, 320W,400W,500W,600W

    15,000 to 108,000 Lumens

    Offers Efficacy up to 175 lm/W

    Inquire
    Categories: ,

    Description

    • Offering wattages from 100W-600W, while standard efficiency is 150 lm/W and Premium is 175-190 lm/W
    • Lumens range from 15,000 to 105,000 lumens
    • Ambient Operating Temperature (-40°C to 55°C) & (-40°F to 131°F) offers 100W, 150W, 200W, 240W, 320W, 400W, 500W, 600W
    • Ambient Operating Temperature (-40°C to 65°C) & (-40°F to 149°F) offers 100W, 150W, 200W, 240W, 300W, 400W
    • Ambient Operating Temperature (-40°C to 80°C) & (-40°F to 176°F) offers 100W, 150W, 200W, 240W, 320W, 400W

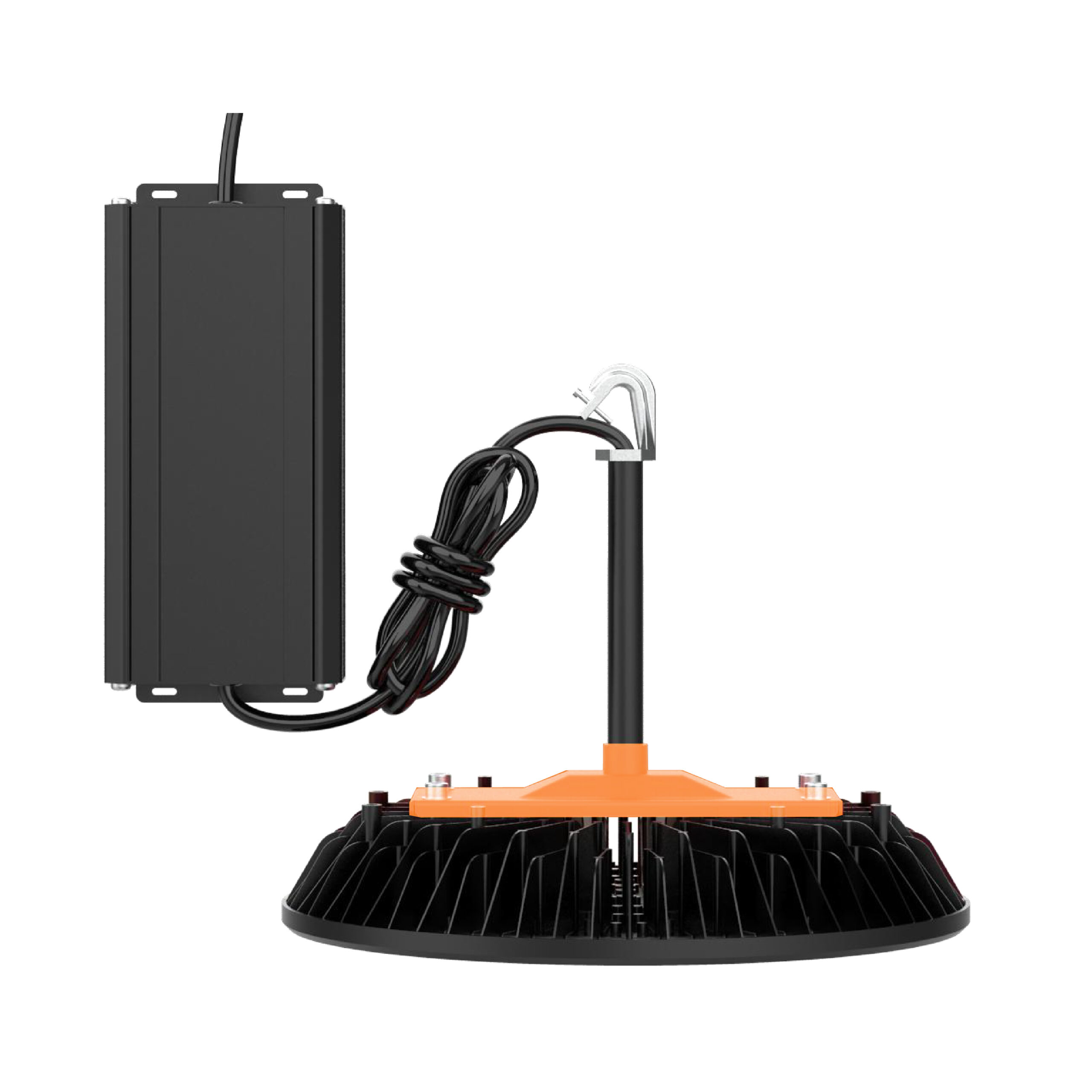

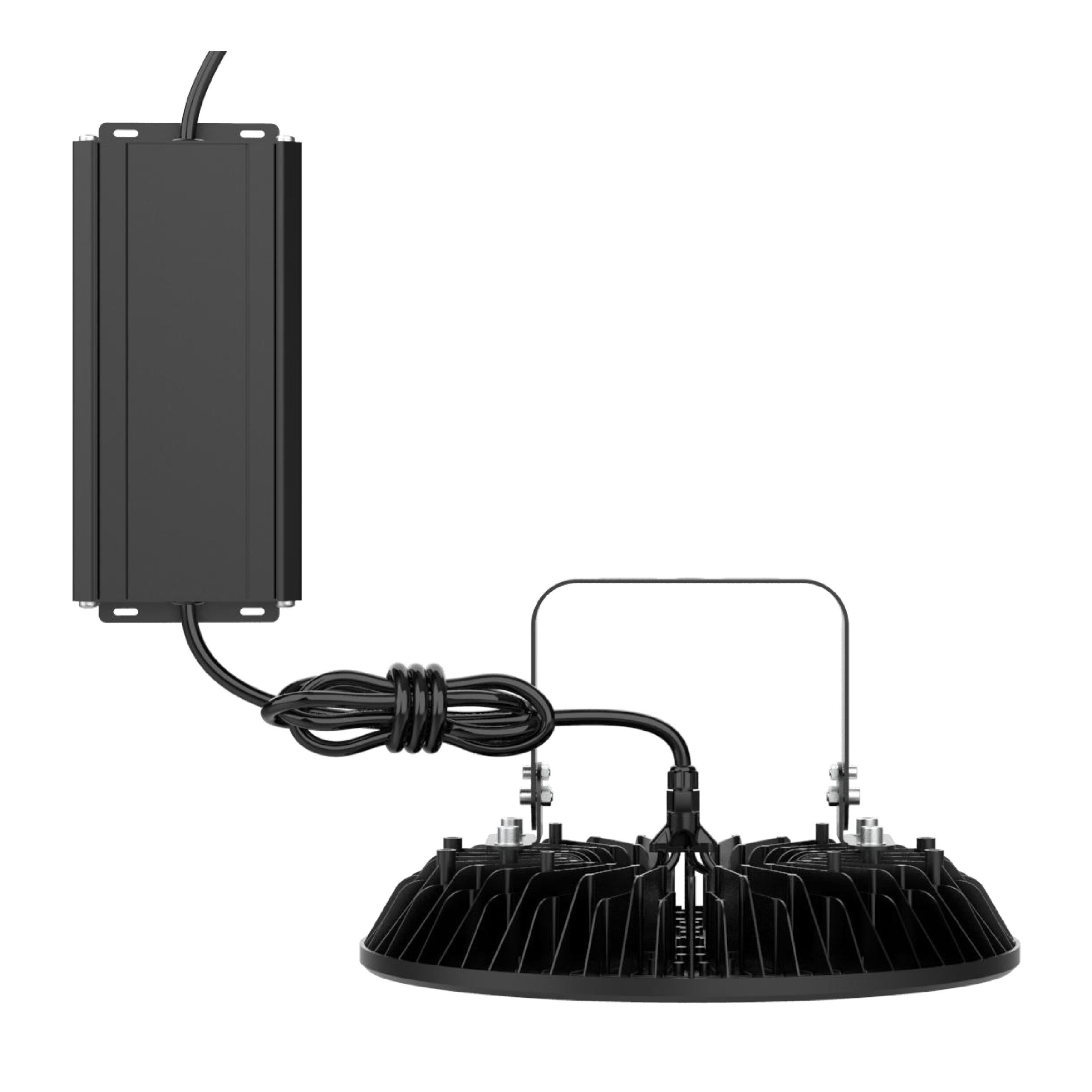

    • Remote mounted driver is optional for crane applications
    • Heavy duty anodized Aluminum heat sink construction with corrosion resistant coating
    • Polycarbonate lenses are standard, while tempered glass and diffused are optional

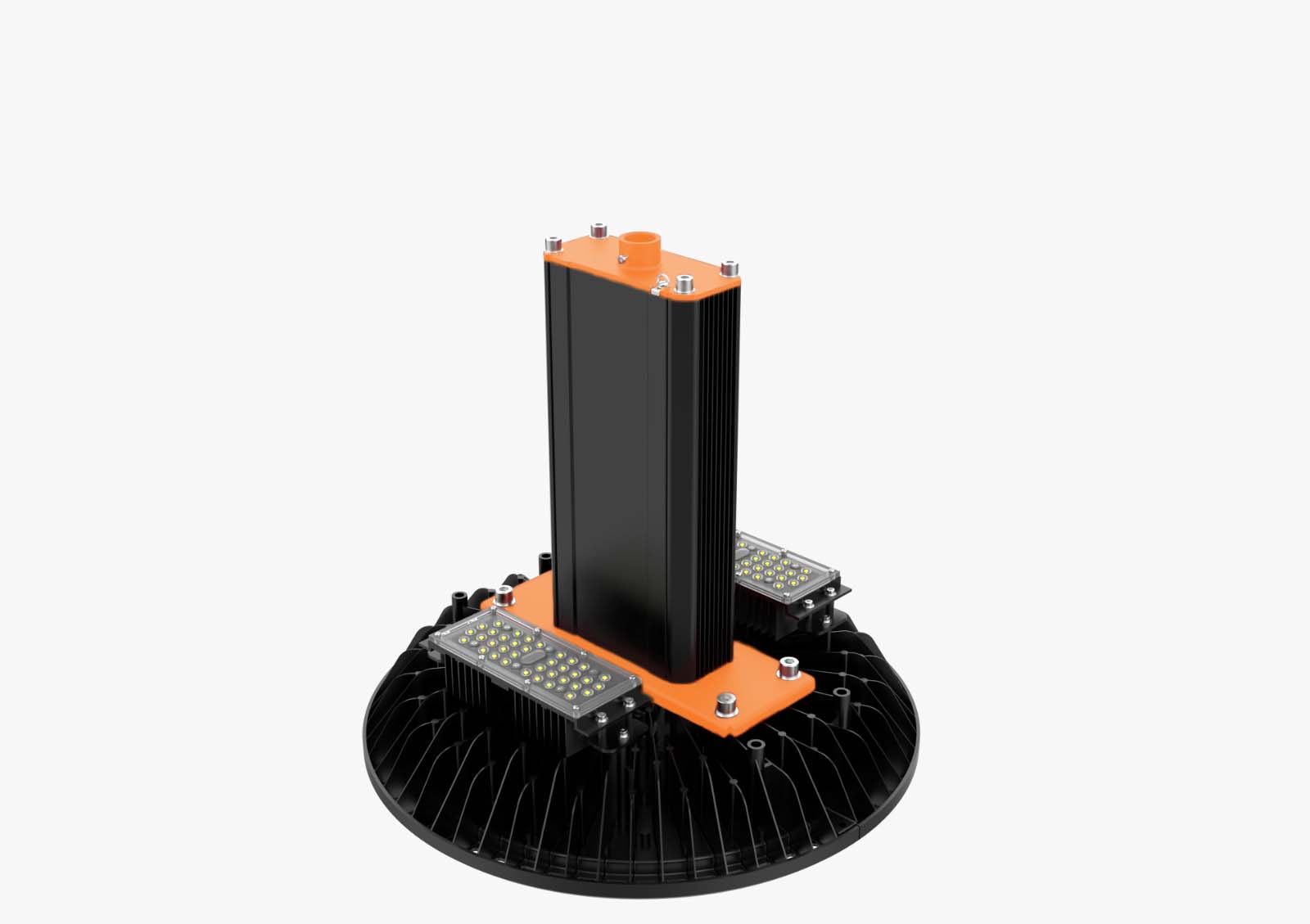

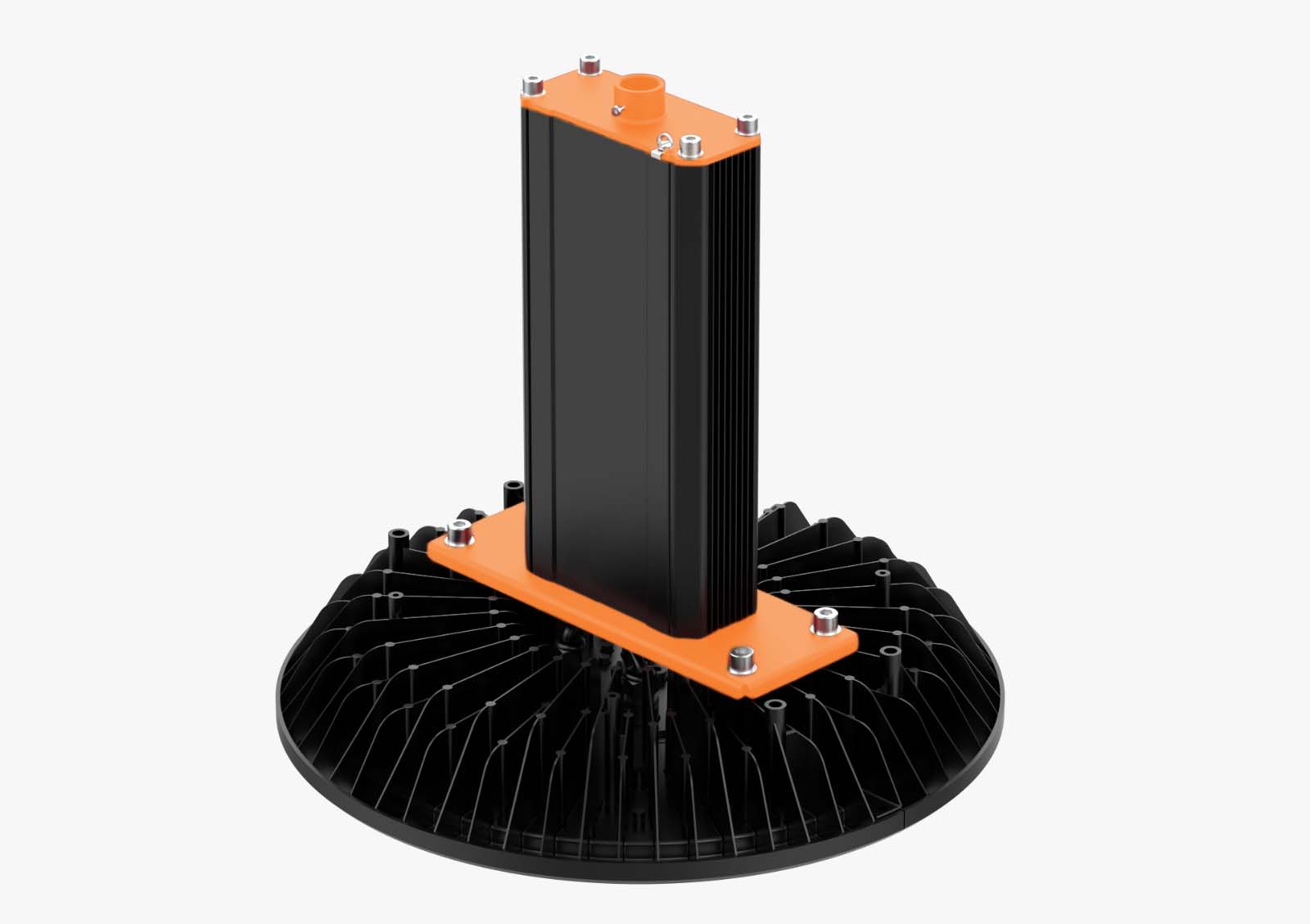

    • Mounting options include eyebolt, hook, ½” & ¾” pendant and standard U-bracket
    • Input voltage of 110-277 VAC & 277-480 VAC
    • Power Factor = >0,95
    • Total Harmonic Distortion = <20%
    • Black Color is standard, Marine Gray is option
    • IP65 Rated for wet locations
    • Wireless Wi-Fi networking is optional
    • ETL Certified
    • Standard 5 and 10-Year Warranty
