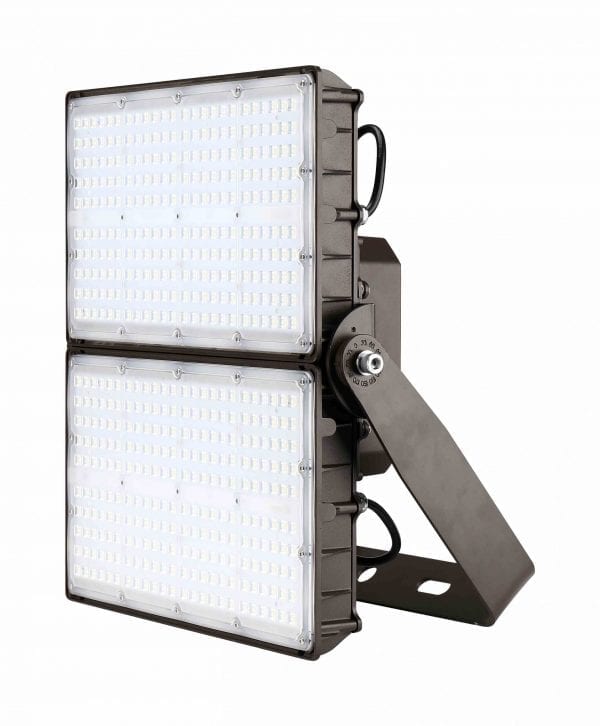

  • FD08 250W&350W-Trunnion-Side 1FD08 250W&350W-Trunnion-Side 1

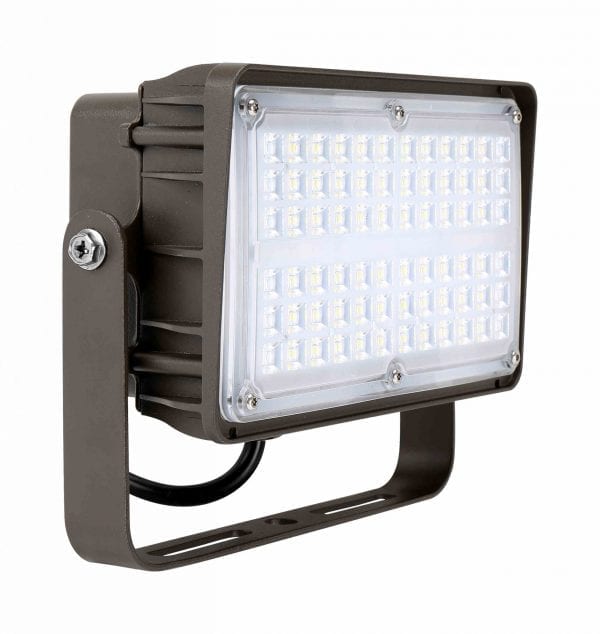

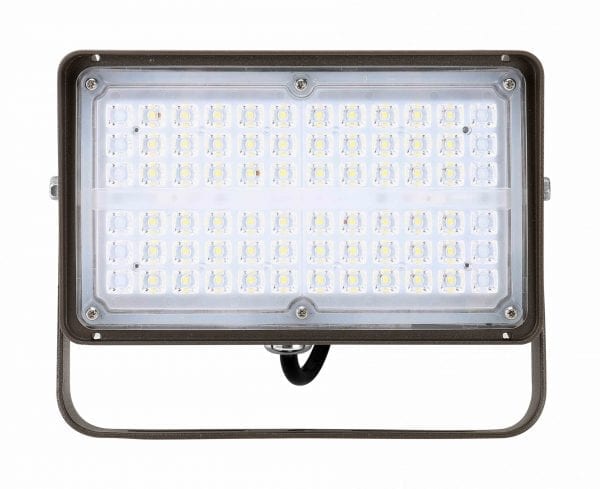

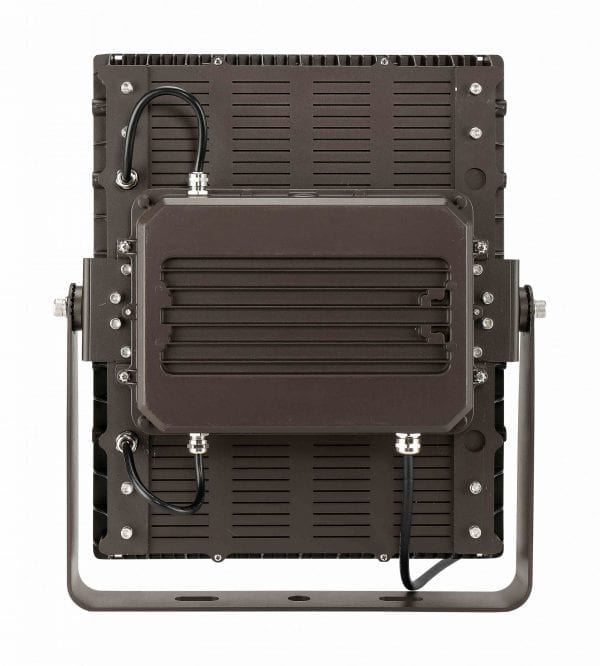

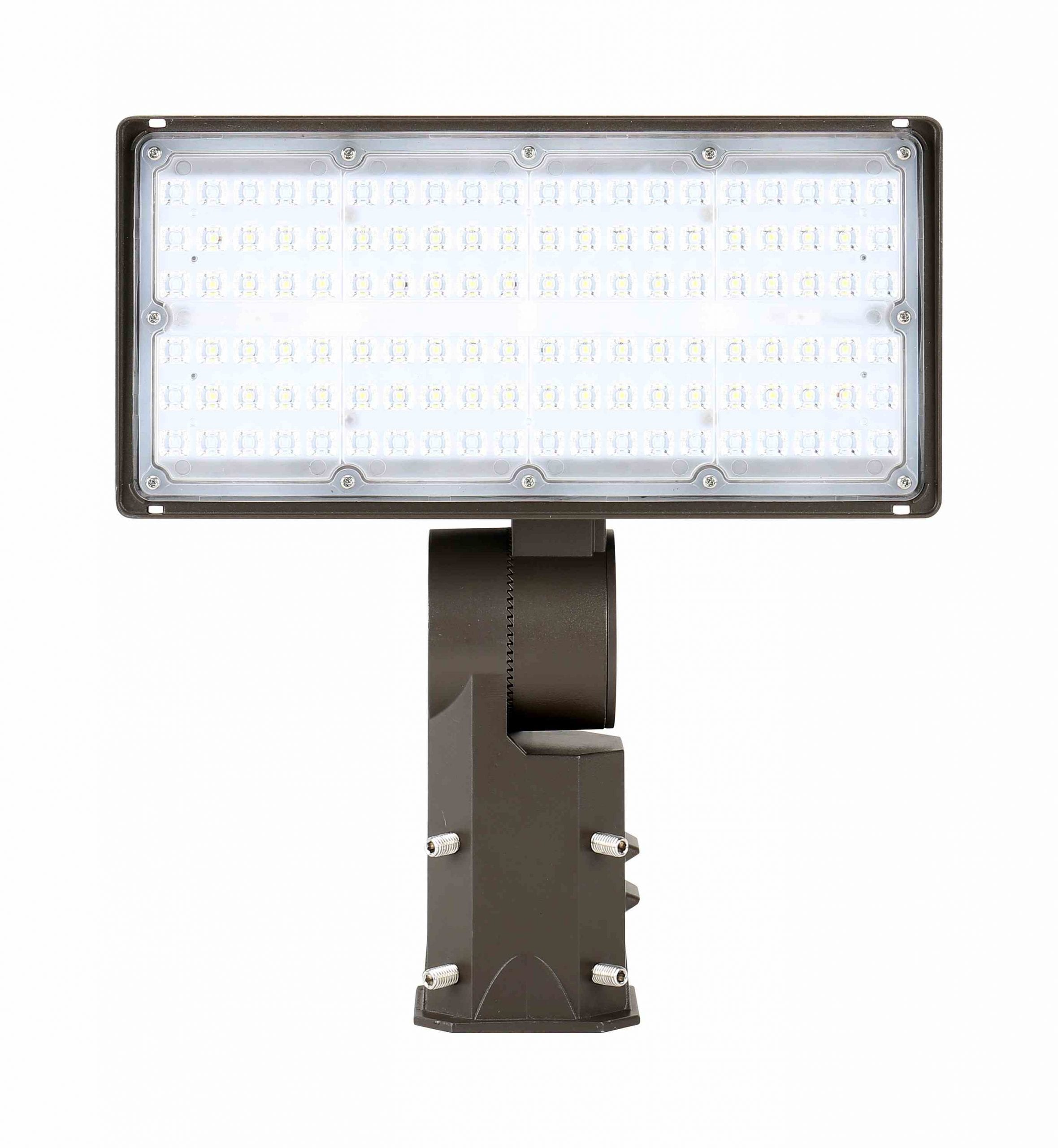

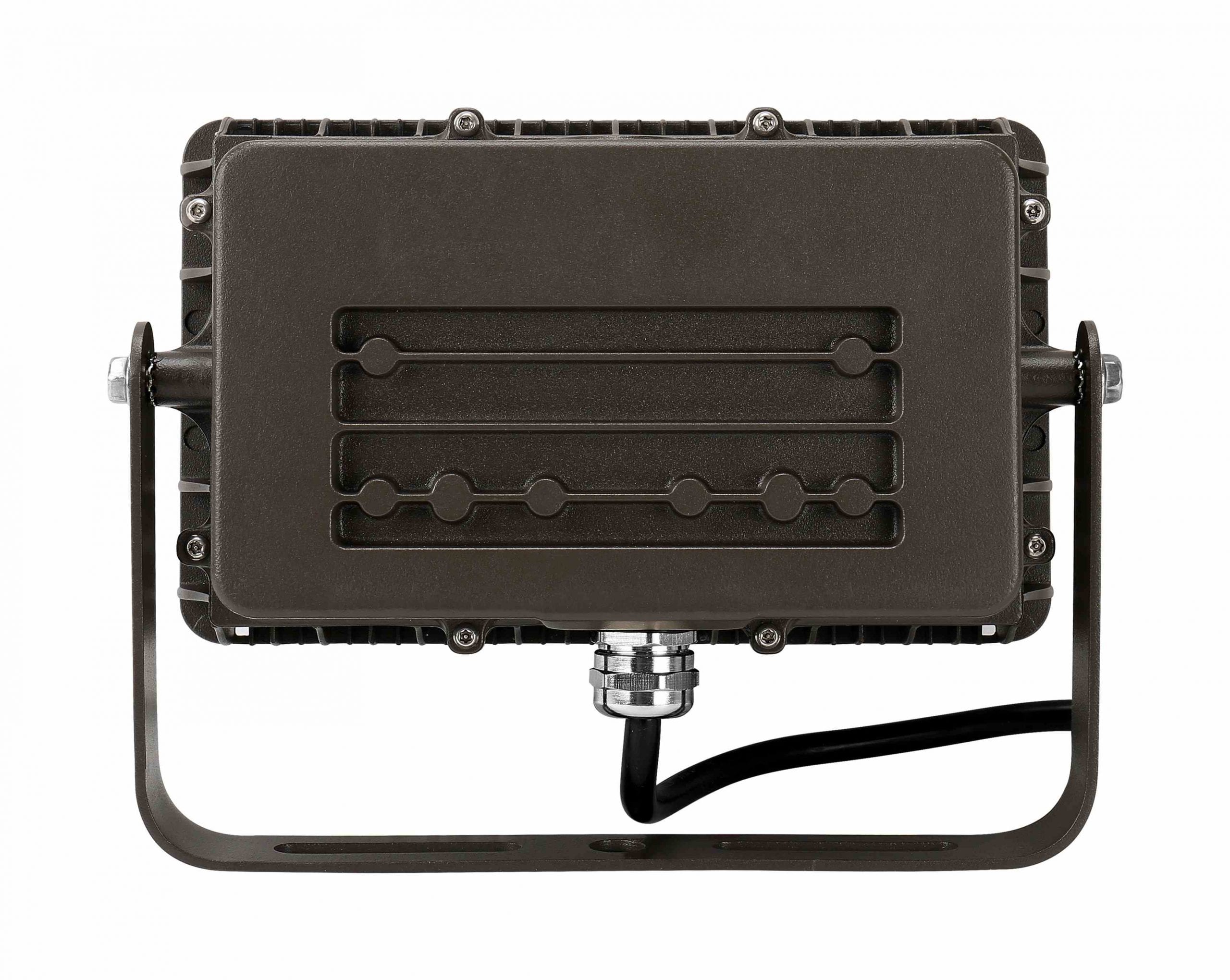

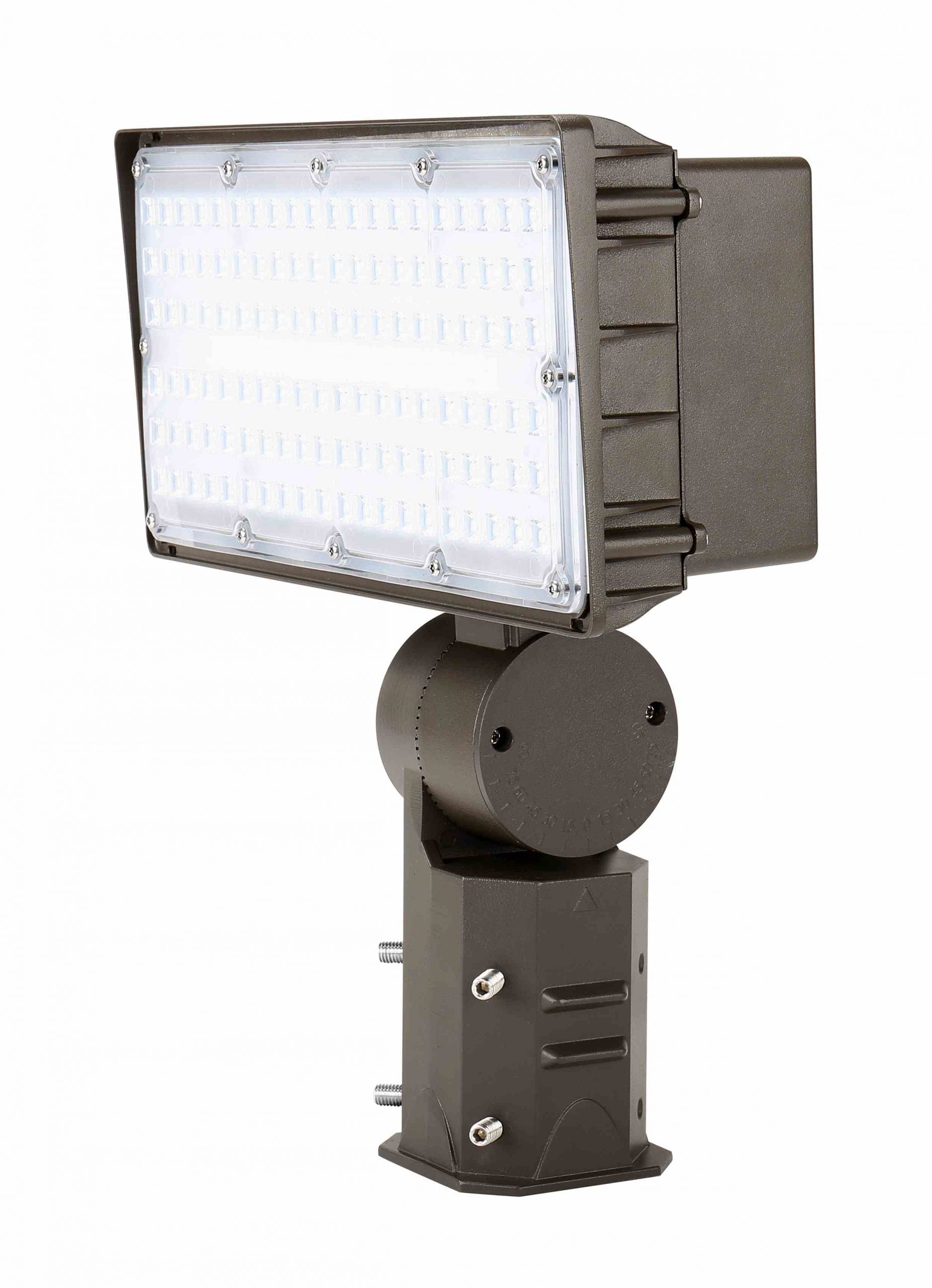

    FD08 LED Flood Light

    15W-27W-45W-60W-70W-100W-135W-150W-200W-250W-350W

    Photocell Optional

    Inquire
    Categories: ,

    Description

    • Housing is made from a rugged die case aluminum that is pre-treated and powder-coated to meet industry standards
    • Door frame features an integral accessory channel for the mounting of optional light control accessories
    • Vented housing isolates LED module from driver, maximizing product life and performance
    • Door frame seals to housing with a continuous extruded silicone gasket
    • Optics (NEMA Type): 7H*6V or 4H*4V (4H*4V only suitable for 135W, 200W, 250W, 350W).
    • Lumen packages from 1,950 to 48,000 Lumens, offering efficacy up to 138 lumens/watt
    • Provides the best combination of vertical and horizontal illumination while reducing light behind the poles
    • High performance acrylic optic securely attached to internal heat sink for maximum thermal dissipation
    • Operating Voltage is 120-277V / 347V-480V
    • Suitable for use in ambient temperatures from -40℃ to 45 ℃ (-40℉ to 113℉)
    • Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
    • UL Listed
    • Standard 5-year limited warranty
