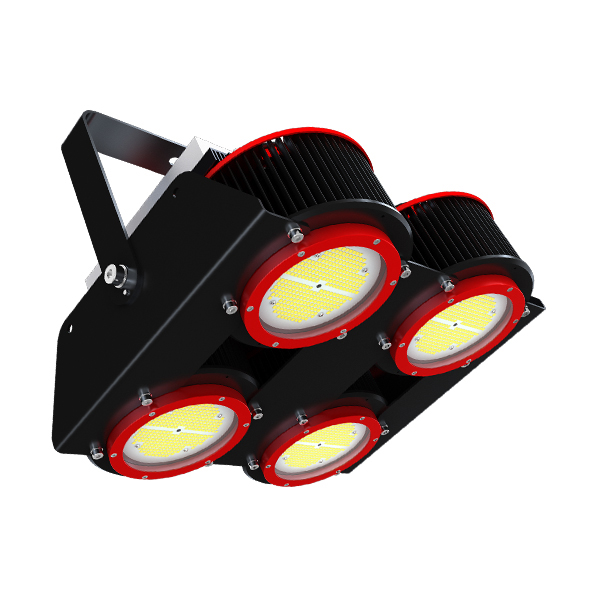

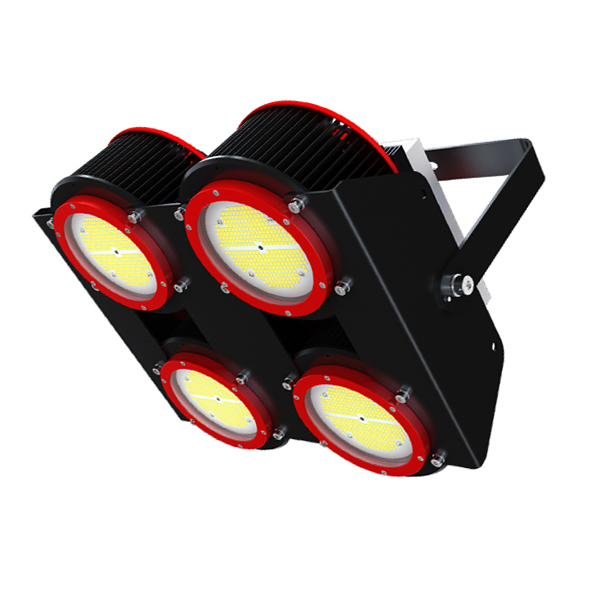

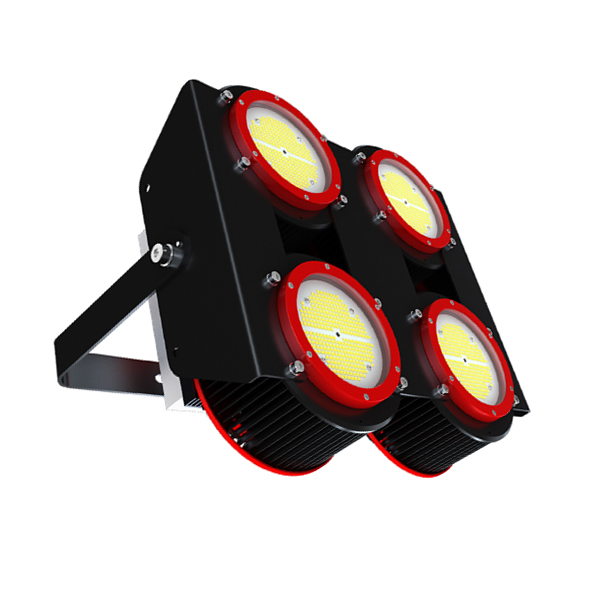

  • HB03 A4 - 400W-500W-600W LED-High-Bay-Light-3HB03 A4 - 400W-500W-600W LED-High-Bay-Light-3

    HB03 LED High Bay

    Offering from 80W to 600W and 12,000 to 90,000 Lumens

    Efficacy of 150 lm/W

    Operating temperatures up to 70°C, while 80°C is optional

    Inquire
    Categories: ,

    Description

    • Efficacies up to 150 lm/W, offering from 12,000 to 90,000 lumens
    • High Quality aluminum construction with improved heat dissipation
    • Special corrosion resistant coating for harsh heavy industrial environments
    • Integrated glass lens for superior light distribution and extreme heat
    • Offering 20°, 30°, 45°, 60°, 90° and 120° light photometrics
    • IP 66 rated for wet locations
    • IK09 rated for high shock and vibration applications
    • Standard 0-10 VDC dimming is optional
    • Input voltage 120-277Vac, 347-480Vac @50/60 Hz
    • Operating temperature is -40°F to 158°F (-40°C to 70°C), 80°C is optional
    • 10KV and 20KV surge protection are optional
    • ETL certified as per UL 1598(A)
