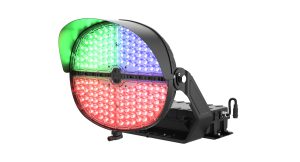

    SL J-Series LED Sports Light

    400W - 1000W
    Offering efficacy up to 165 lm/w
    Offering 64,000 to 150,000 Lumens
    Offering R, B, G and W CCY options
    DMX512, DALI, NFC Control options

    Inquire
    Categories: ,

    Description

    • Die-cast aluminum (AL-1070) housing, profiled for outdoor applications
    • IP66 Rated
    • Lumen packages from 64,000 to 150,000 Lumens, offering efficacy up to 165 lumens/watt
    • Available in 15°, 30°, 45° and 60° beam angles
    • C.C.T. is optional in standard 2700K, 3000K, 4000K, 5000K and 6500K
    • C.R.I. is optional in 70, 80 or 90
    • Low profile, 3G vibration rated and compact design minimizes wind load requirements
    • Housing is completely sealed against moisture and environmental contaminants
    • Operating voltage is 100-277 VAC or 277-480 VAC
    • Standard with 0-10V dimming driver(s)
    • Built in surge suppression with 10KA @120-277V, 20KA @347-480V
    • THD: ≤15%, Power Factor: ≥95%
    • Suitable for operating in ambient temperatures of -40˚ C to 50˚ C (-40℉ to 122℉).
    • Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
    • ETL Listed
    • Standard 5-Year Limited Warranty
