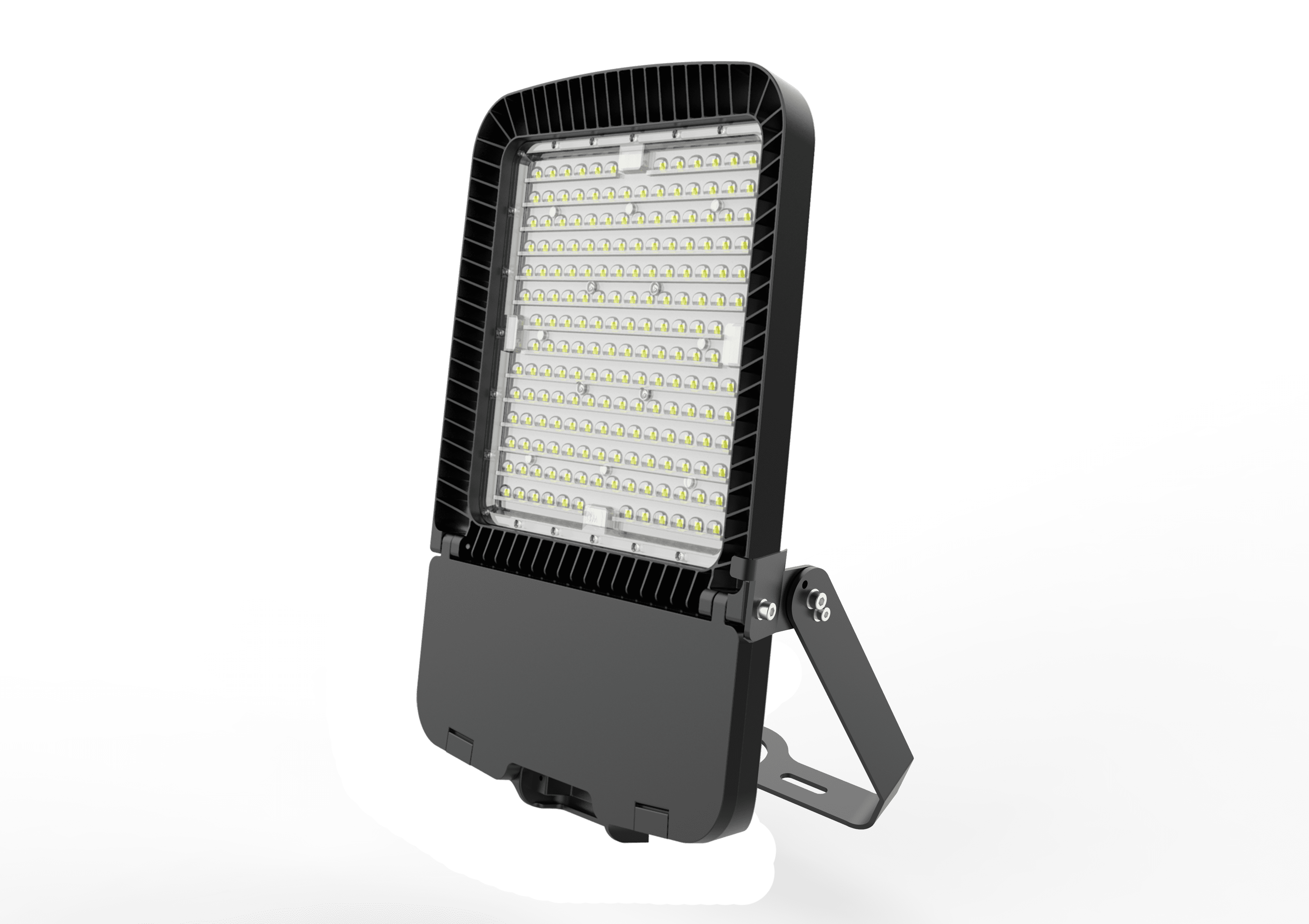

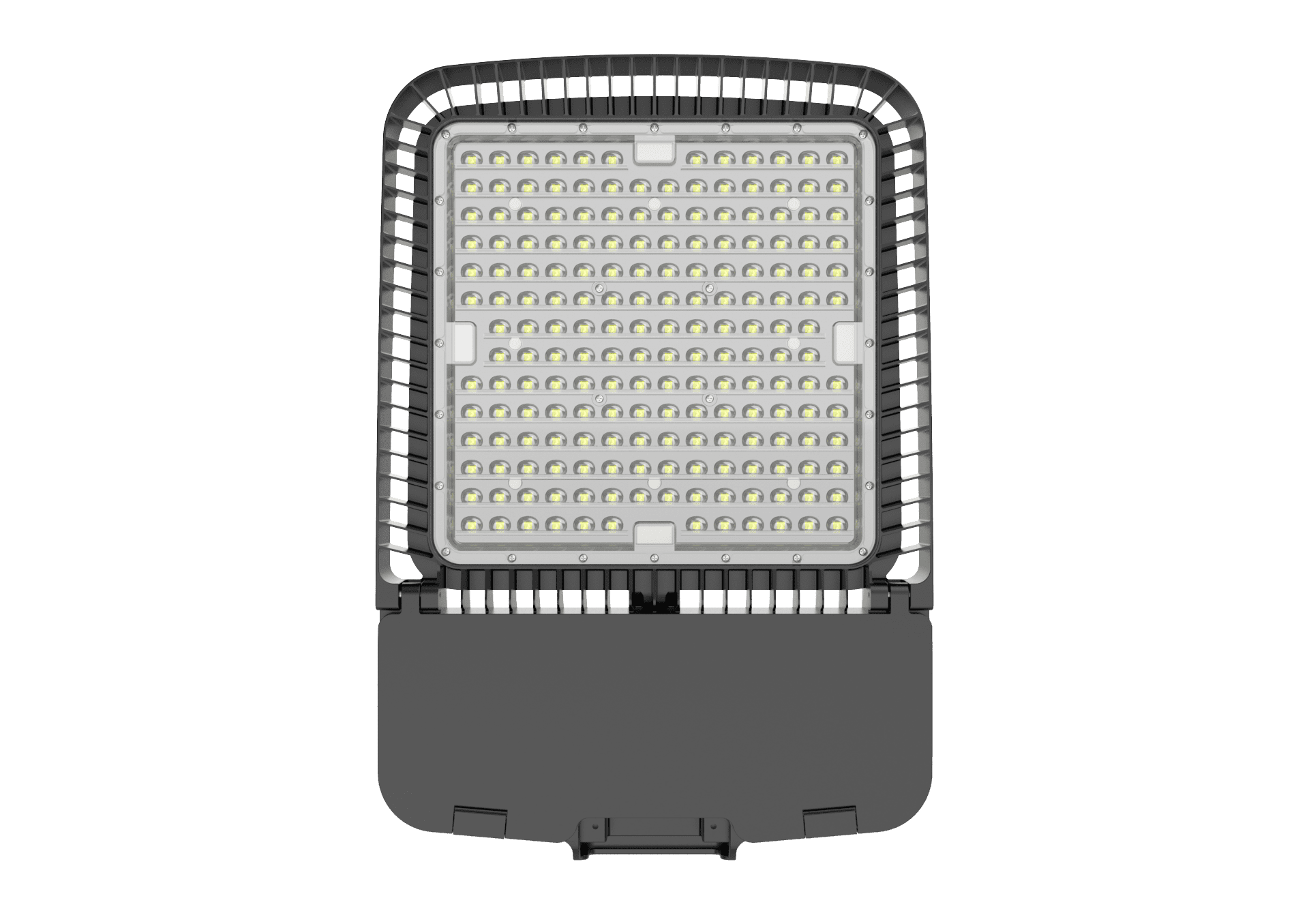

    AL01 LED AREA LIGHT

    75W-100W-120W-145W-180W-
    200W-230W-300W
    Field selectable CCT and Wattage
    Efficacy up to 170 lm/W
    Photocell and Motion Sensor
    Optional

    Inquire
    Categories: ,

    Description

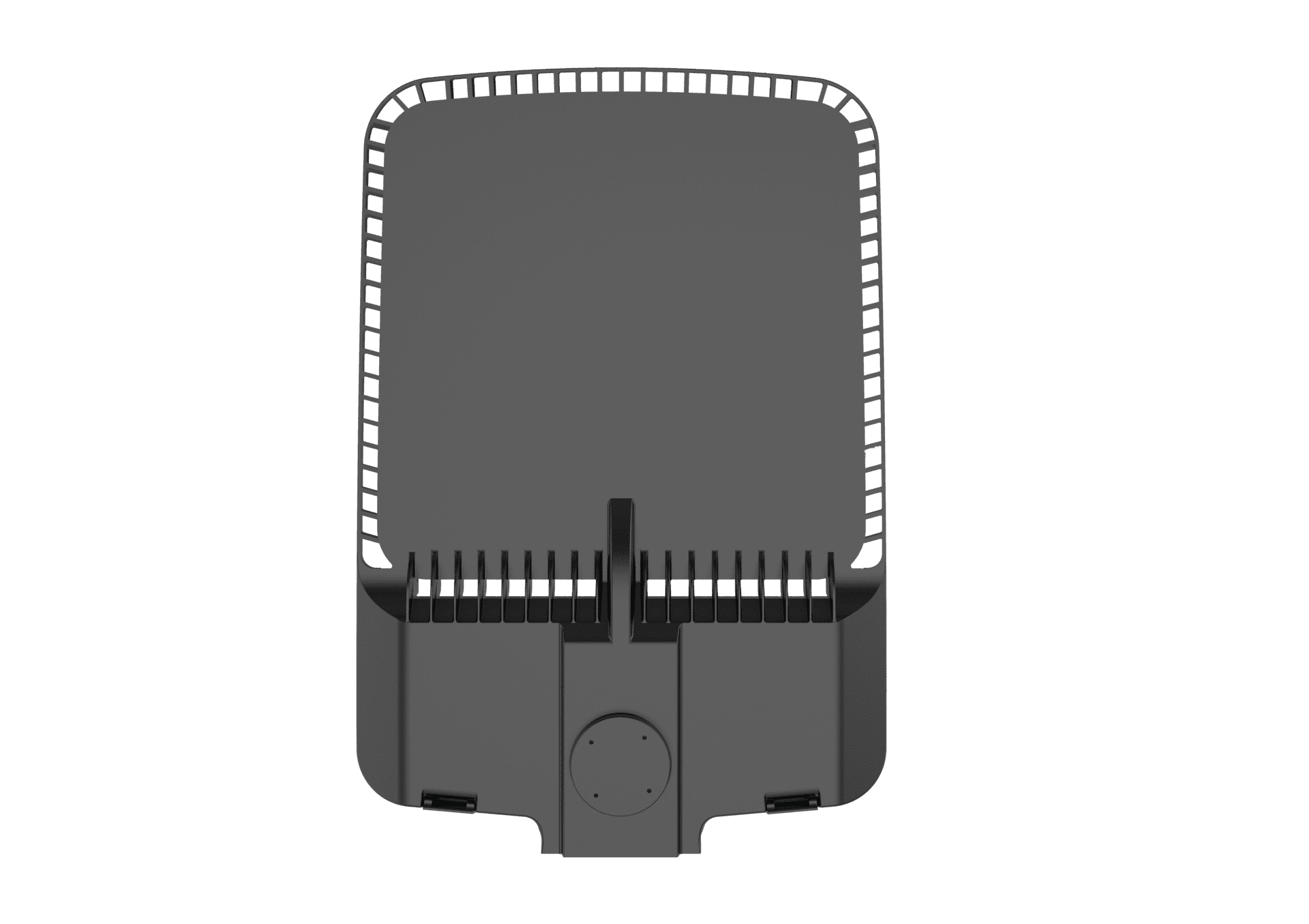

    • Cast aluminum alloy body with heat exchanger designed to isolate the driver heat from the high efficiency LED’s
    • Compact design with All-Around design heat exchanger, promoting reliability and long life
    • Lumen package from 4,000 to 53,000 lumens, efficacy up to 153 lm/W
    • Beam angles include 10°, 30°, 60°,90°, 120°, Asymmetric and Custom NEMA flood photometrics
    • Advanced optical system, Internal reflectance optic technology with backlight shield design
    • Dark Sky compliant with full cut-off, no up light and impressive B.U.G ratings
    • Field selectable CCT, fixed CCT (3000K/4000K/5000K) optional
    • Field selectable Wattage(75W to 300W), fixed wattage optional
    • Operating temperature is -40℃ to 50℃ (-40℉ to 122℉)
    • Operating voltage is 100-277 VAC, 347V and 480V Optional
    • Power Factor >93% @ 277VAC, THD <15%
    • IP65 rated, suitable for indoor and outdoor
    • Bronze is standard color, while Black and Marine Gray are optional
    • L70 rated for >180,000 hours

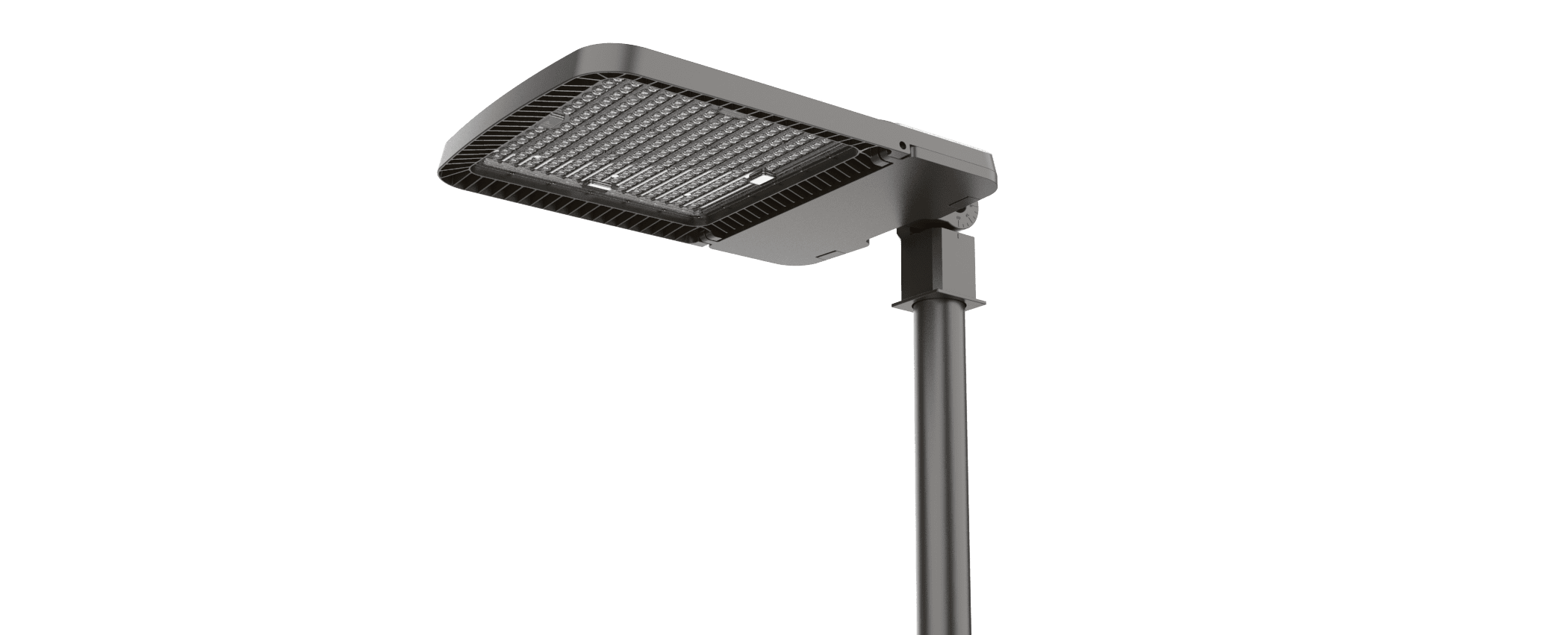

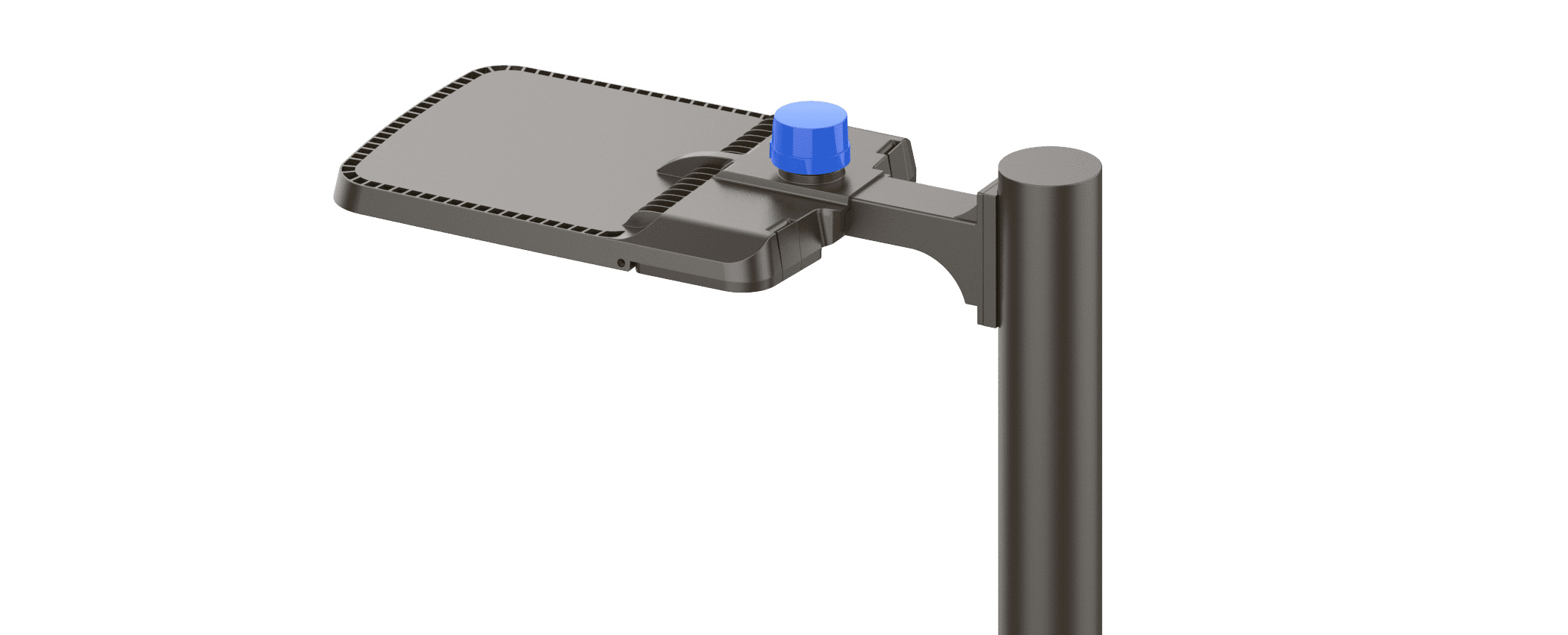

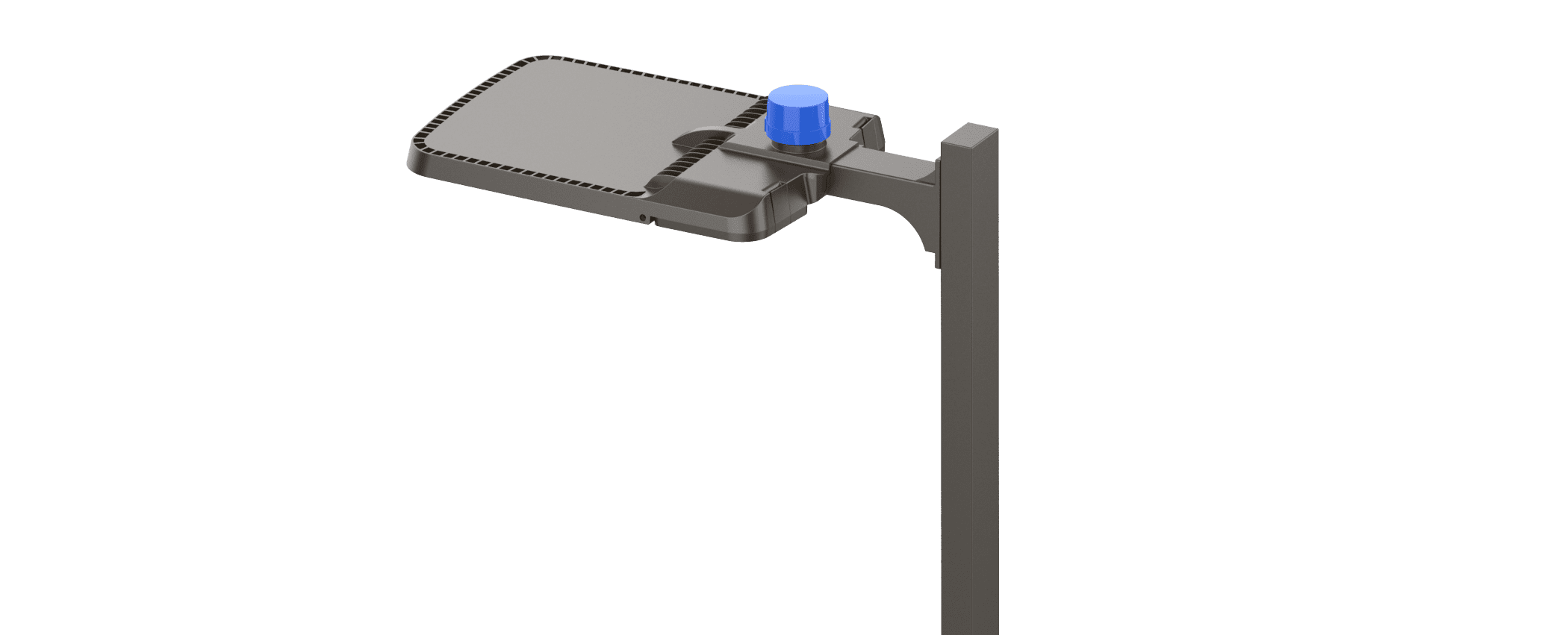

    • Five mounting options including Universal slip fitter, standard slip fitter, square pole, round pole and yoke mount
    • ETL Listed
    • Standard 5-Year Limited Warranty, 10-Year
