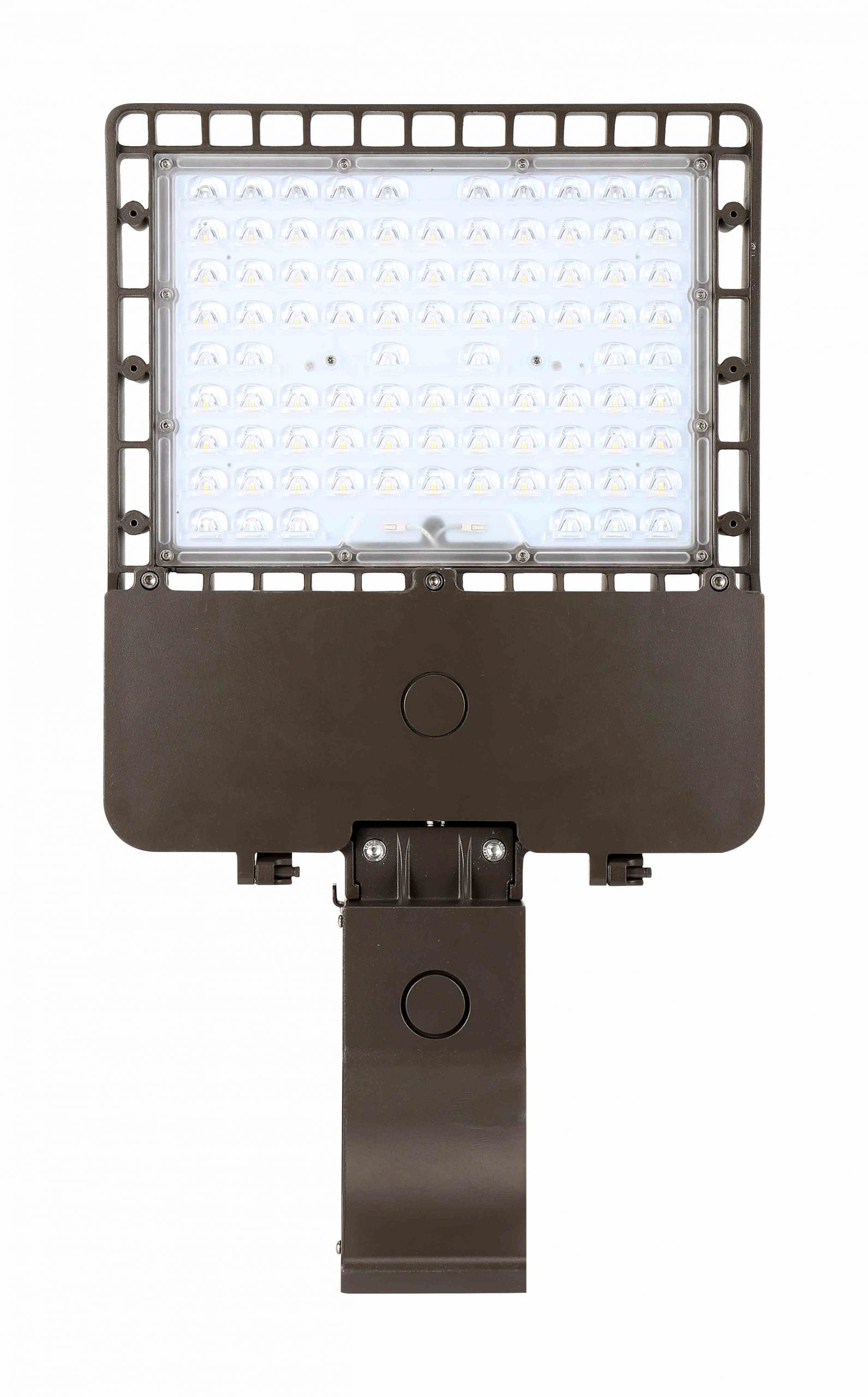

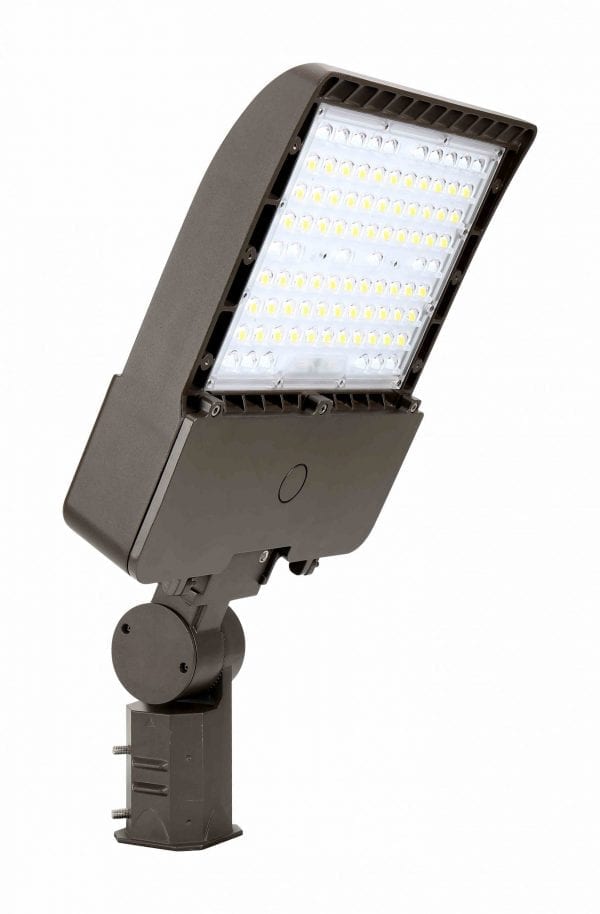

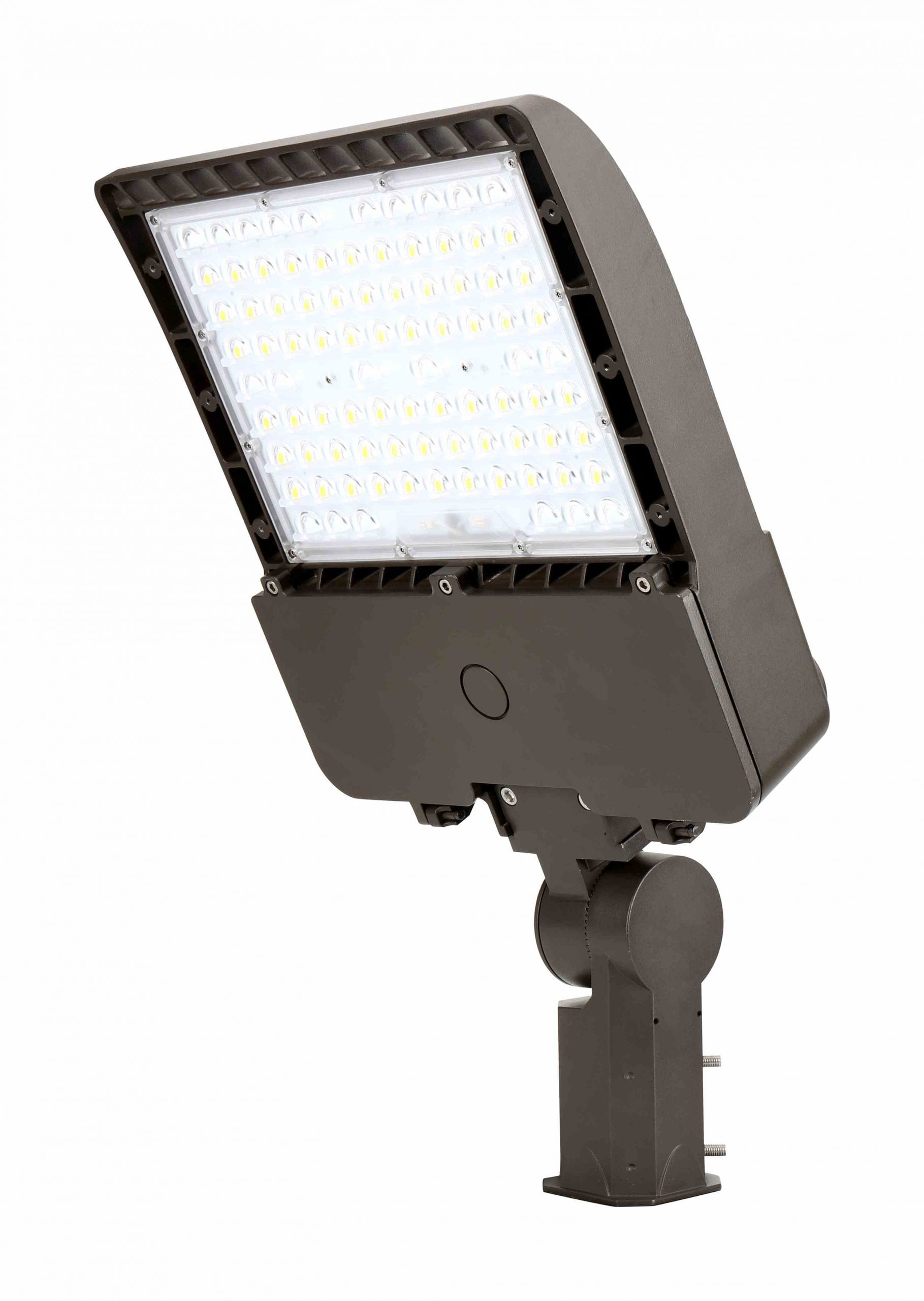

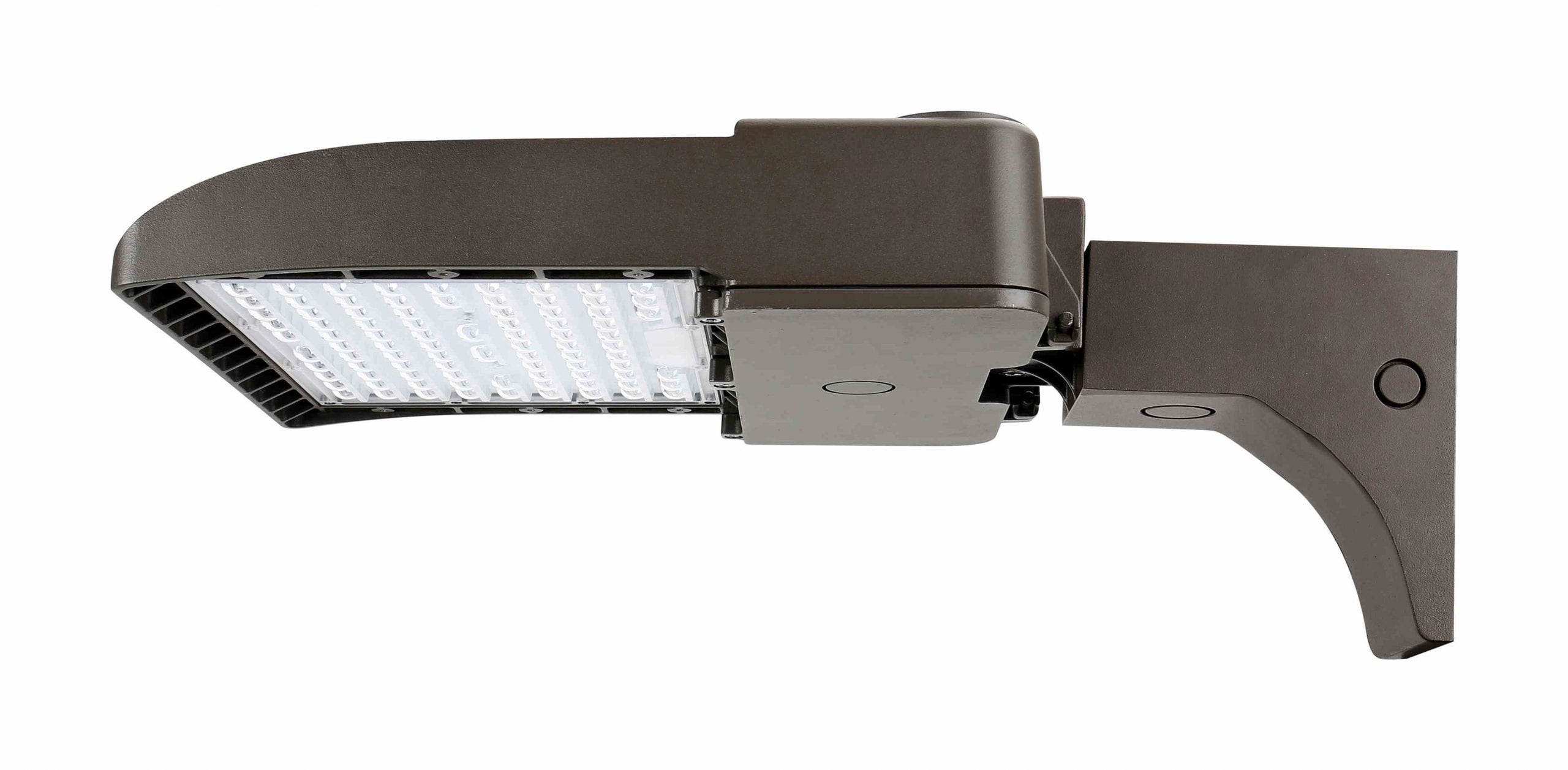

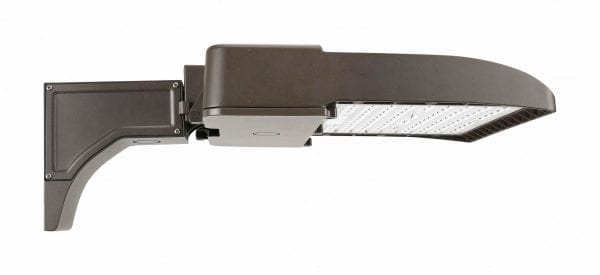

    AL06 LED Area Light

    100W-150W-200W-300W-350W

    Motion Sensor and Photocell

    Optional

    Inquire
    Categories: ,

    Description

    • Rugged one-piece, die-cast aluminum housing secures the thermally conductive LED panel and electrical chamber
    • Distribution patterns including Type Ⅲ and Type Ⅳ and Type Ⅴ
    • Suitable for mounting heights ranging from 26-50 ft. in area lighting applications
    • C.C.T. is optional in standard 4000K and 5000K (70 C.R.I.) configurations
    • Lumen packages from 14,100 to 52,150 Lumens, replaces up to 1000W Metal Halide
    • To maximize light control, shields are optional. They can be factory or field installed.
    • Optics can conform to dark sky requirements
    • Photocell and bi-level motion sensor optional
    • Operating voltage is 100-277V, 347-480V and supports 0-10V dimming
    • Surge protection is optional
    • Fixtures are suitable for use in ambient temperatures from-40℃ to 45 ℃ (-40℉ to 113℉).
    • Available in black, dark bronze, silvery gray and white
    • Estimated 100,000-hour LED lifespan based on IES LUMEN-80 results and TM-21 calculations
    • Standard 10-year limited warranty
