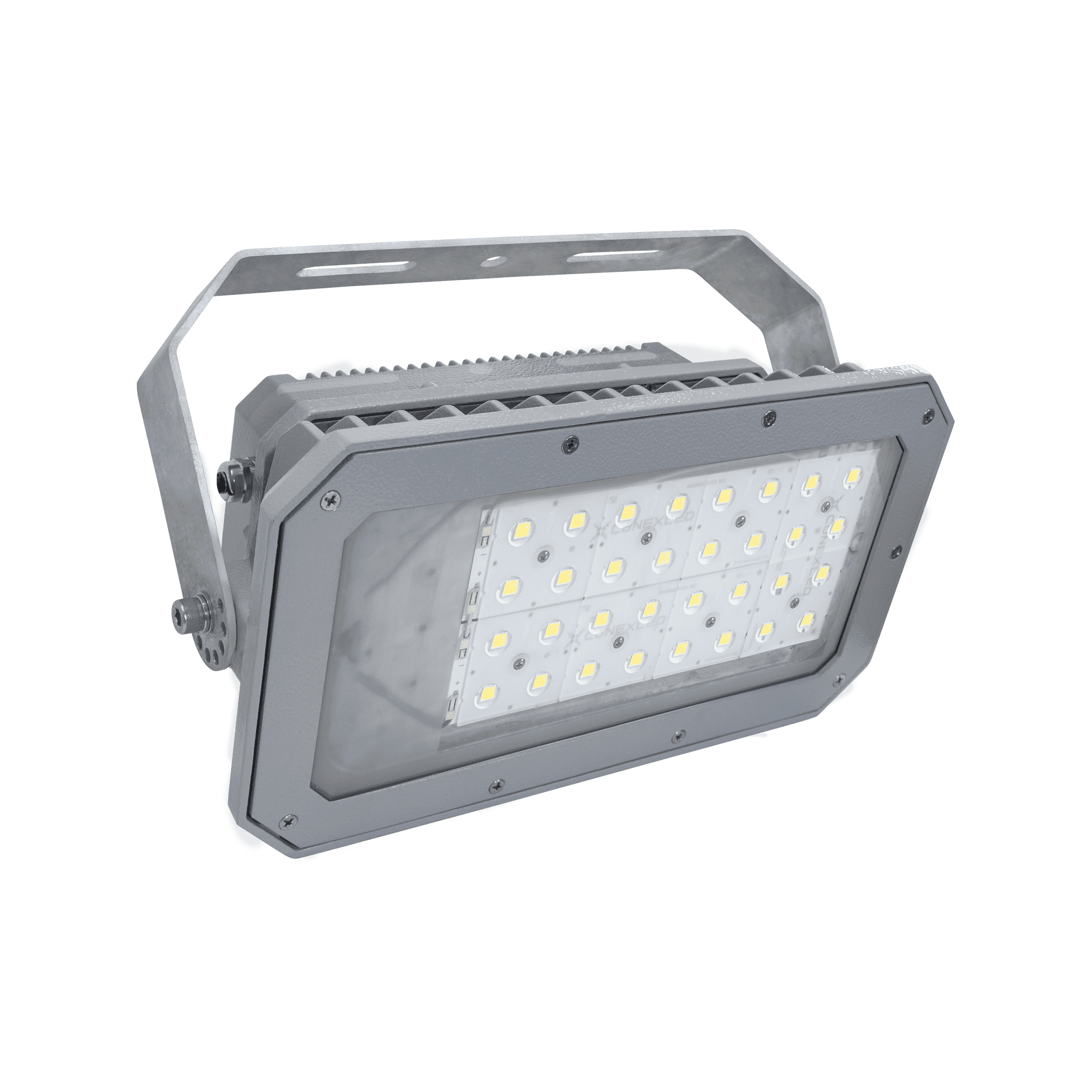

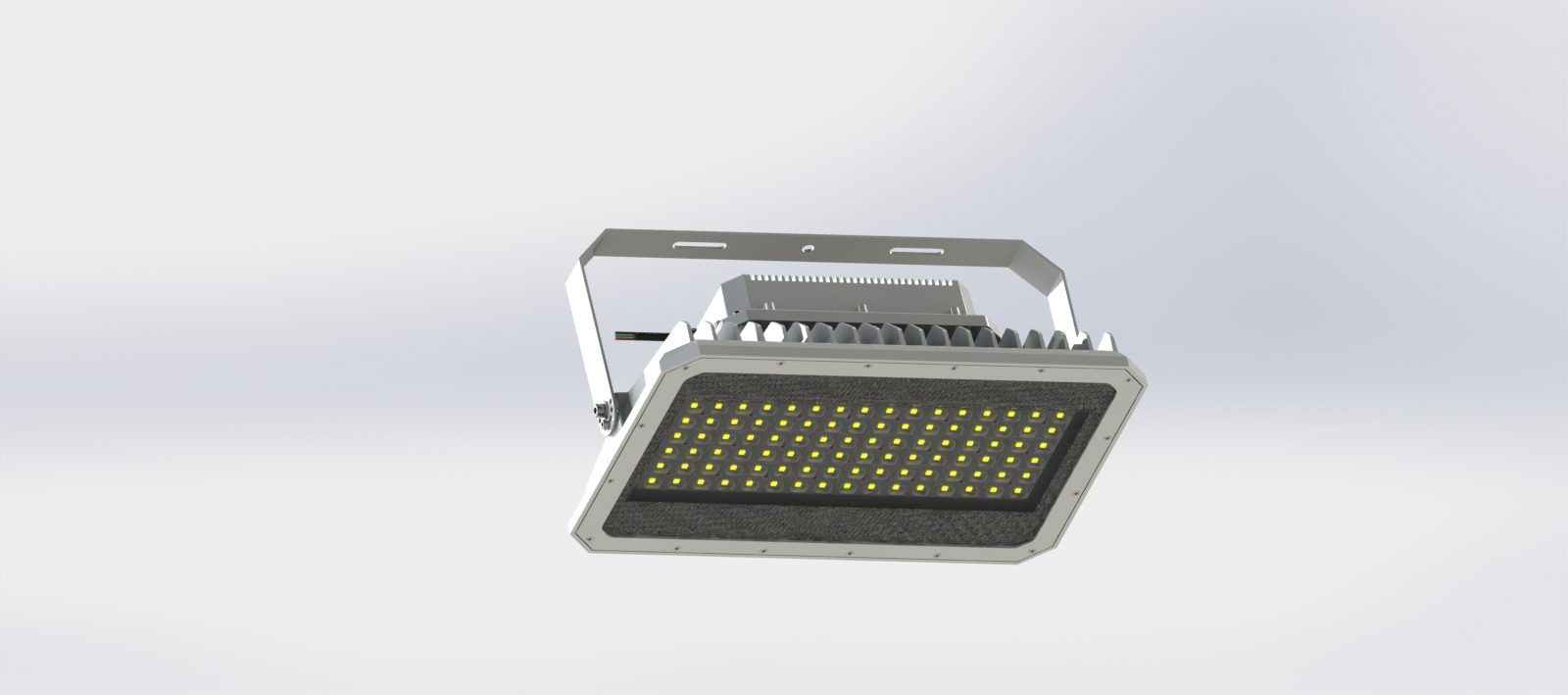

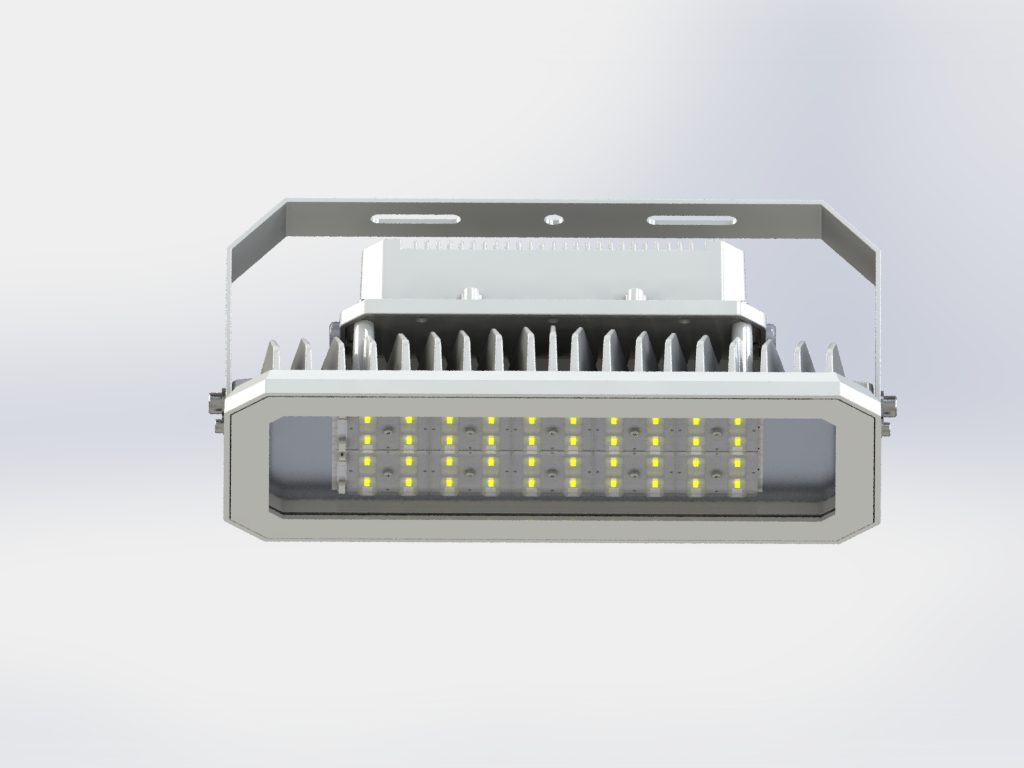

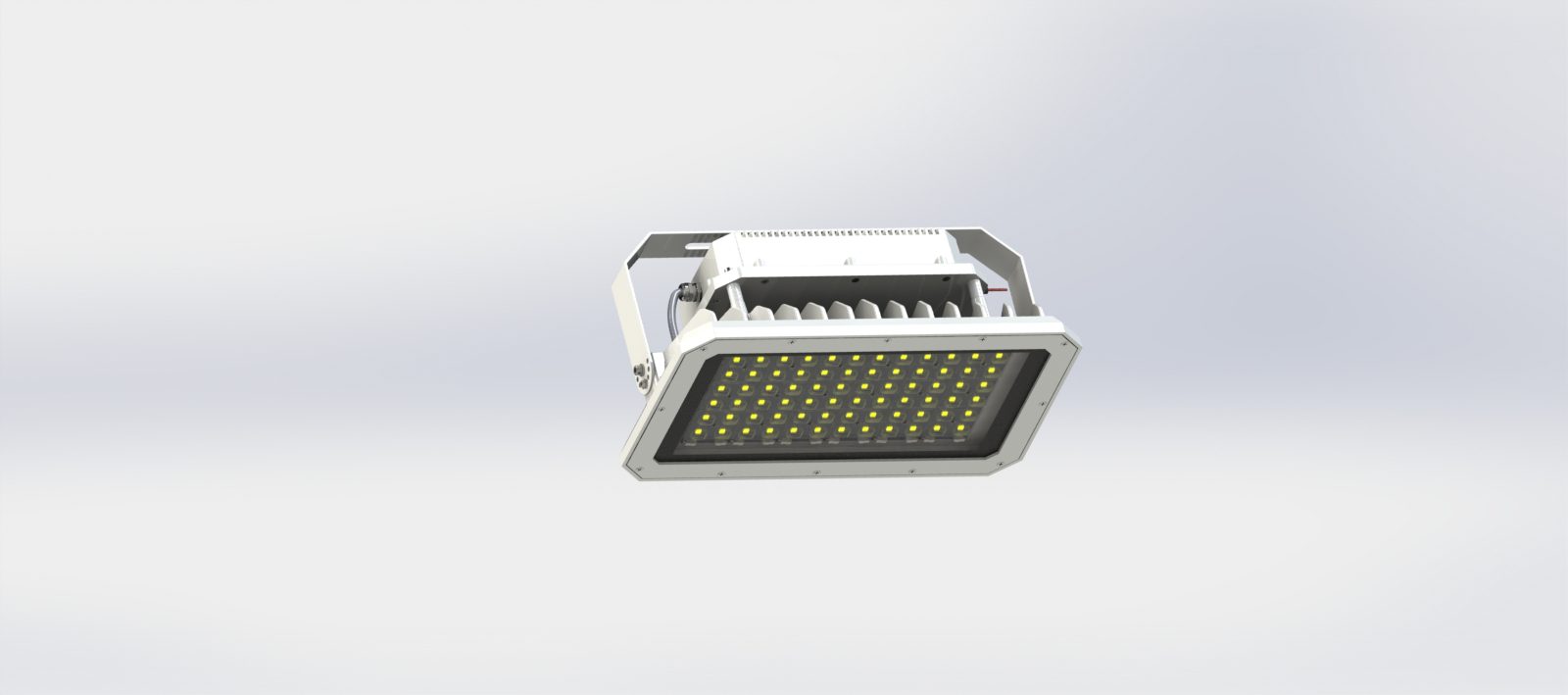

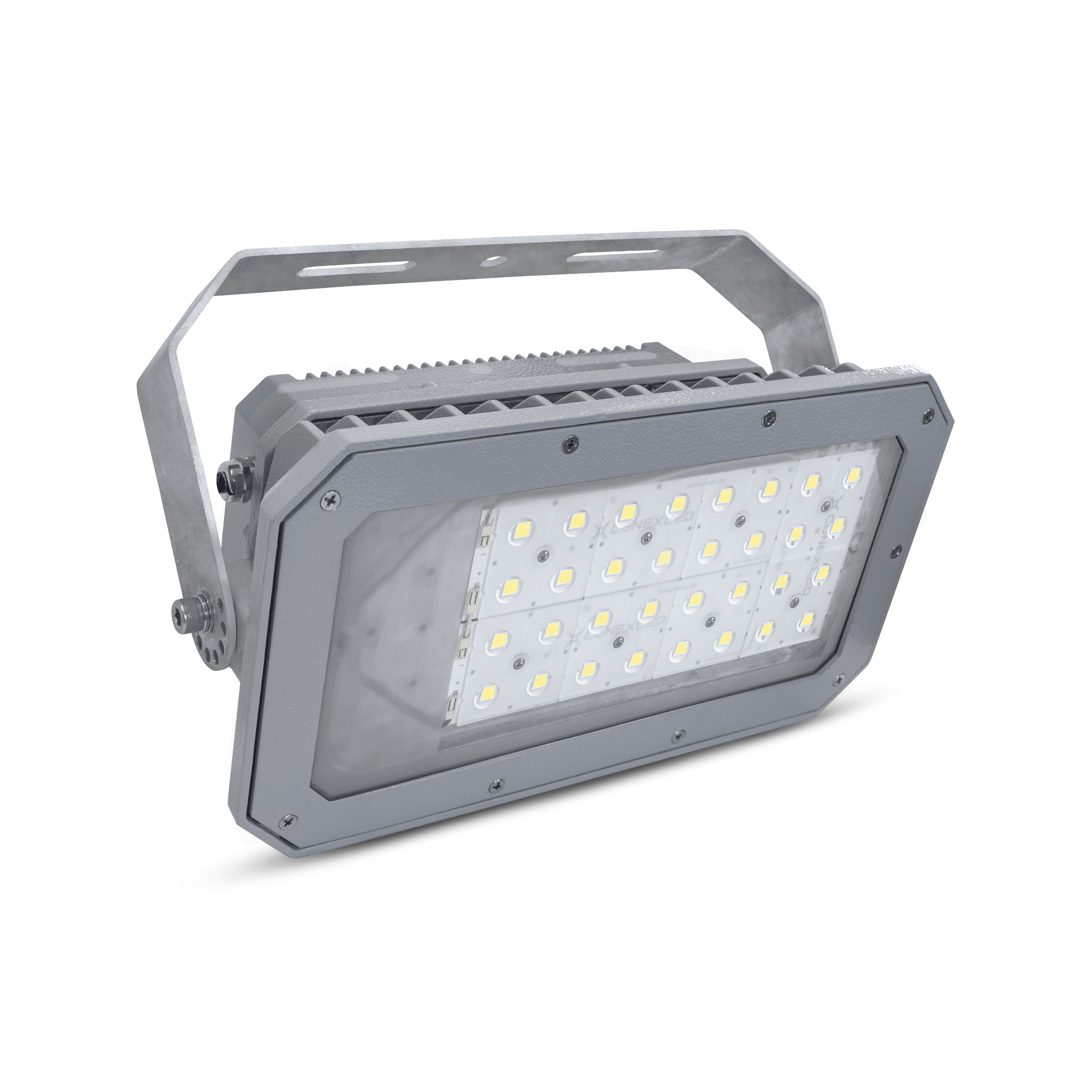

    LED HARSH ENVIRONMENT FLOOD LIGHT (HEF01)

    From 30W to 400W
    From 30W to 400W
    Lumen package from 4,000 to 53,000 lumens
    Harsh Environment, IP67 Rated

    Inquire
    Category:

    Description

    • Cast aluminum alloy body with heat exchanger designed to isolate the driver heat from the high efficiency LED’s
    • Robust design for harsh environments and extended service life
    • Patented corrosive resistant electrostatic power coating to withstand all environments
    • Compact design, promotes high lumen output with improved reliability
    • IP67 rated for dust and wet locations
    • Marine gray is standard color, other colors are optional
    • Tempered glass diffuser is standard, while polycarbonate is optional
    • Designed for high mechanical strength and long-range lighting
    • Advanced optical system, polycarbonate lens provides superior uniformity and reduces glare
    • Lumen package from 4,000 to 53,000 lumens, efficacy up to 153 lm/W
    • Beam angles include 10°, 30°, 60°,90°, 120° and Asymmetric
    • Standard CCT is 5000K, 3000K is optional
    • Input power ranging from 30W to 400W
    • Operating voltage is 100-277 VAC
    • Power Factor >93% @ 277VAC, THD <15%
    • Operating temperature is -40℃ to 55℃ (-40℉ to 131℉)
    • Surface mount trunnion bracket is standard; cable tray and pipe hangers are optional
    • UL Listed – 1598
    • Canada: CSA C22.2, No. 250
    • Standard 5-Year Limited Warranty
