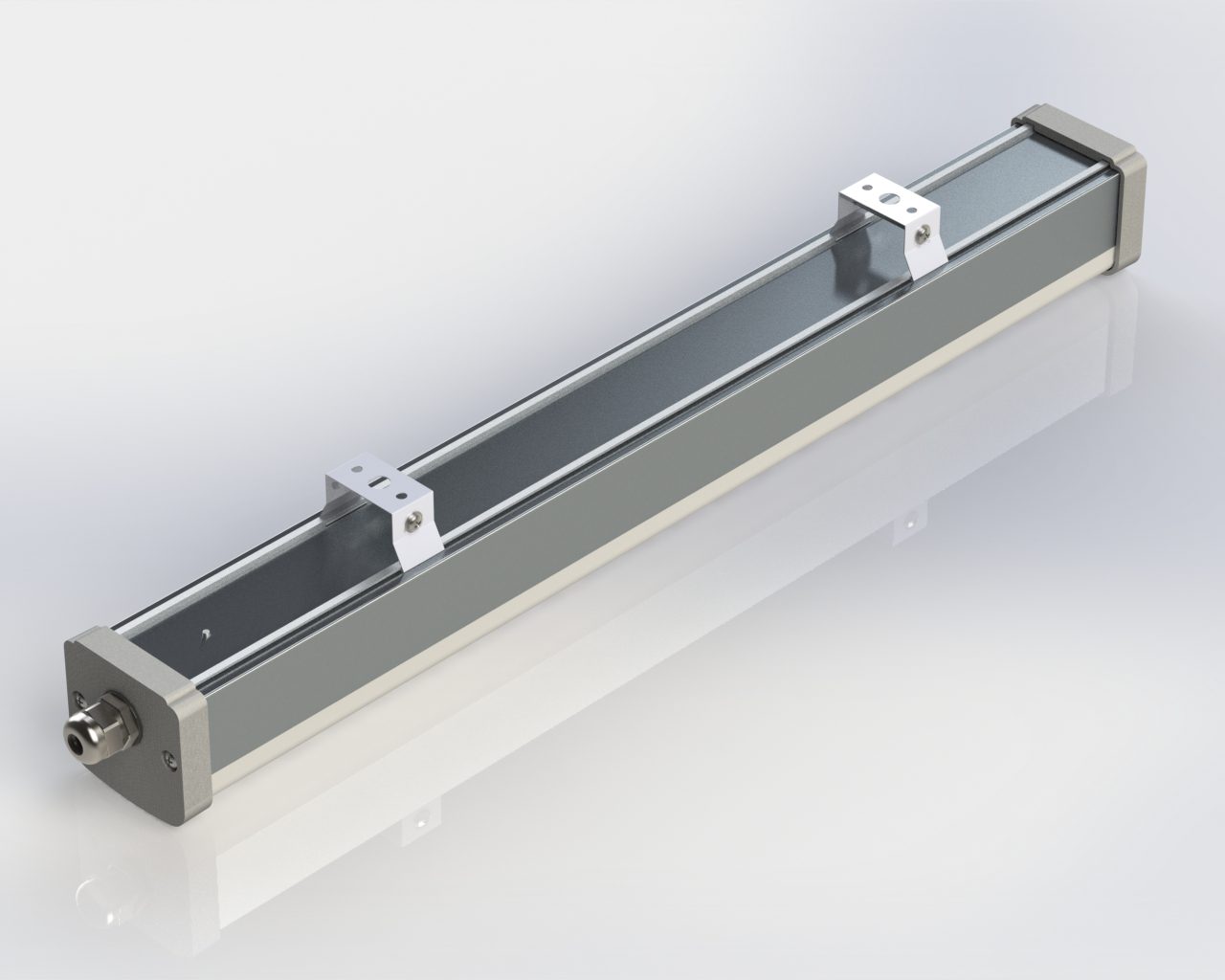

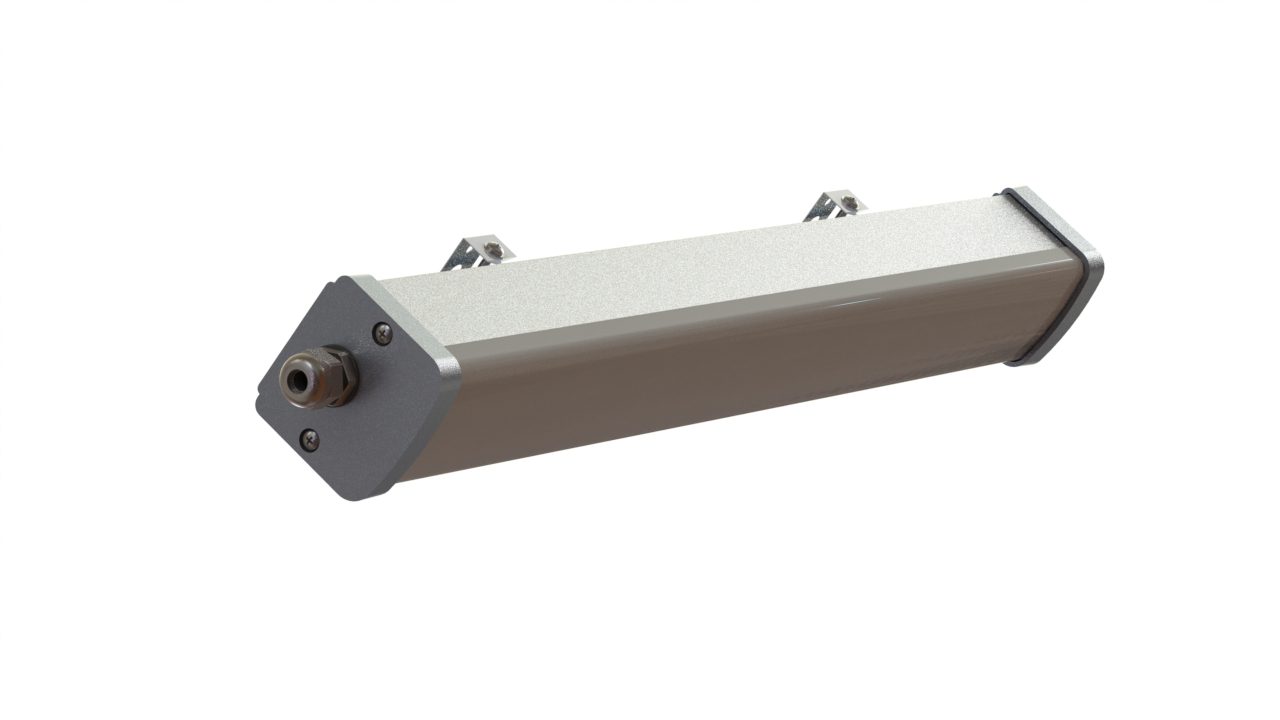

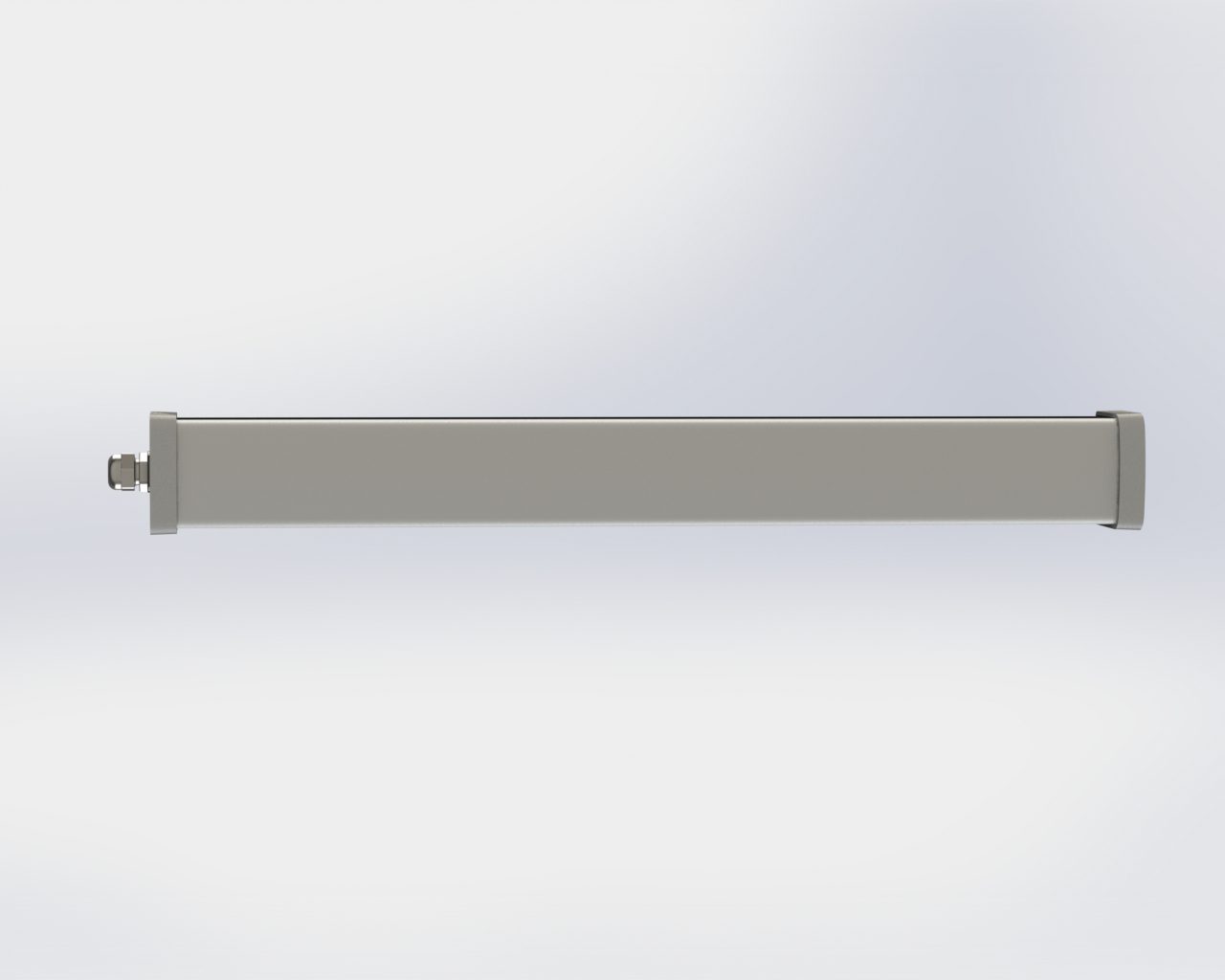

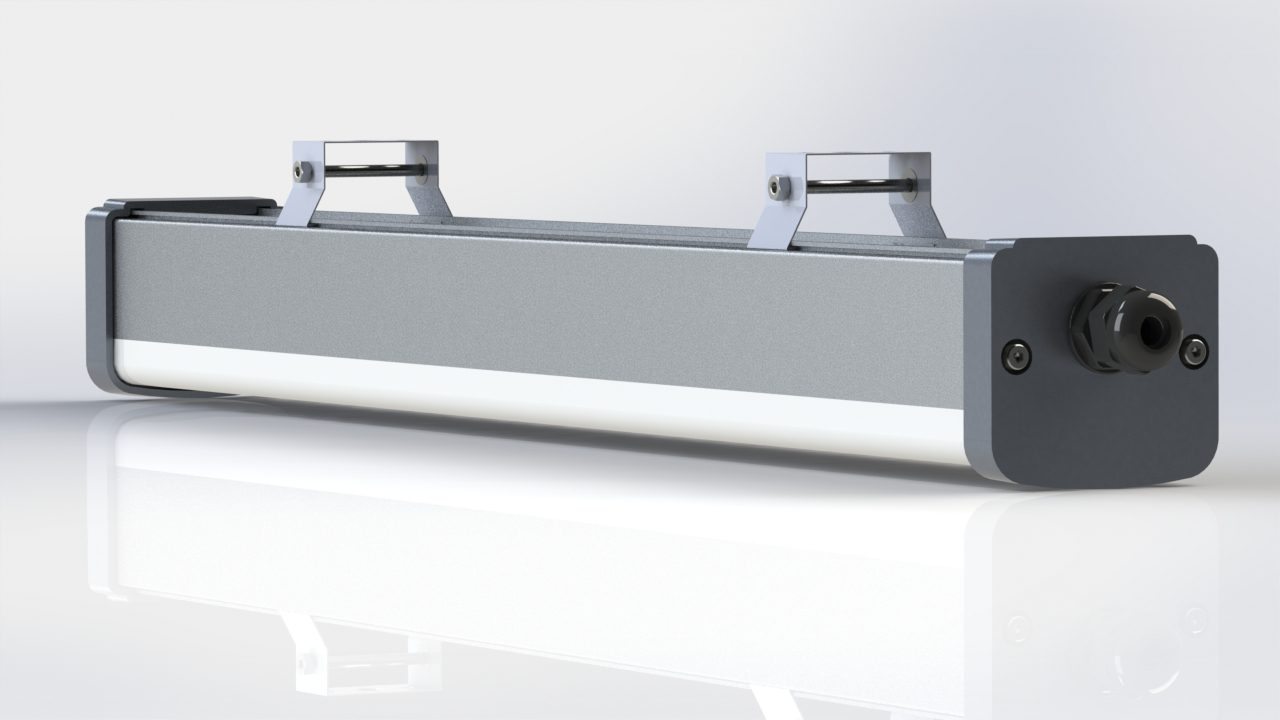

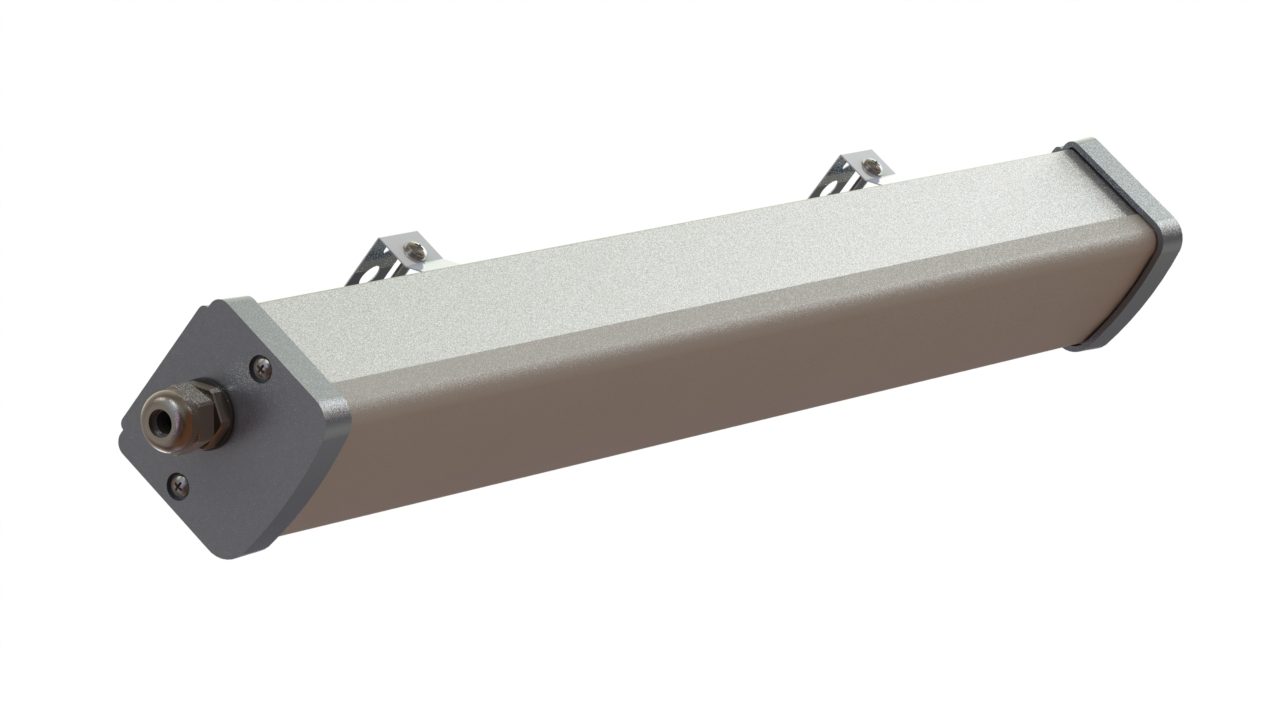

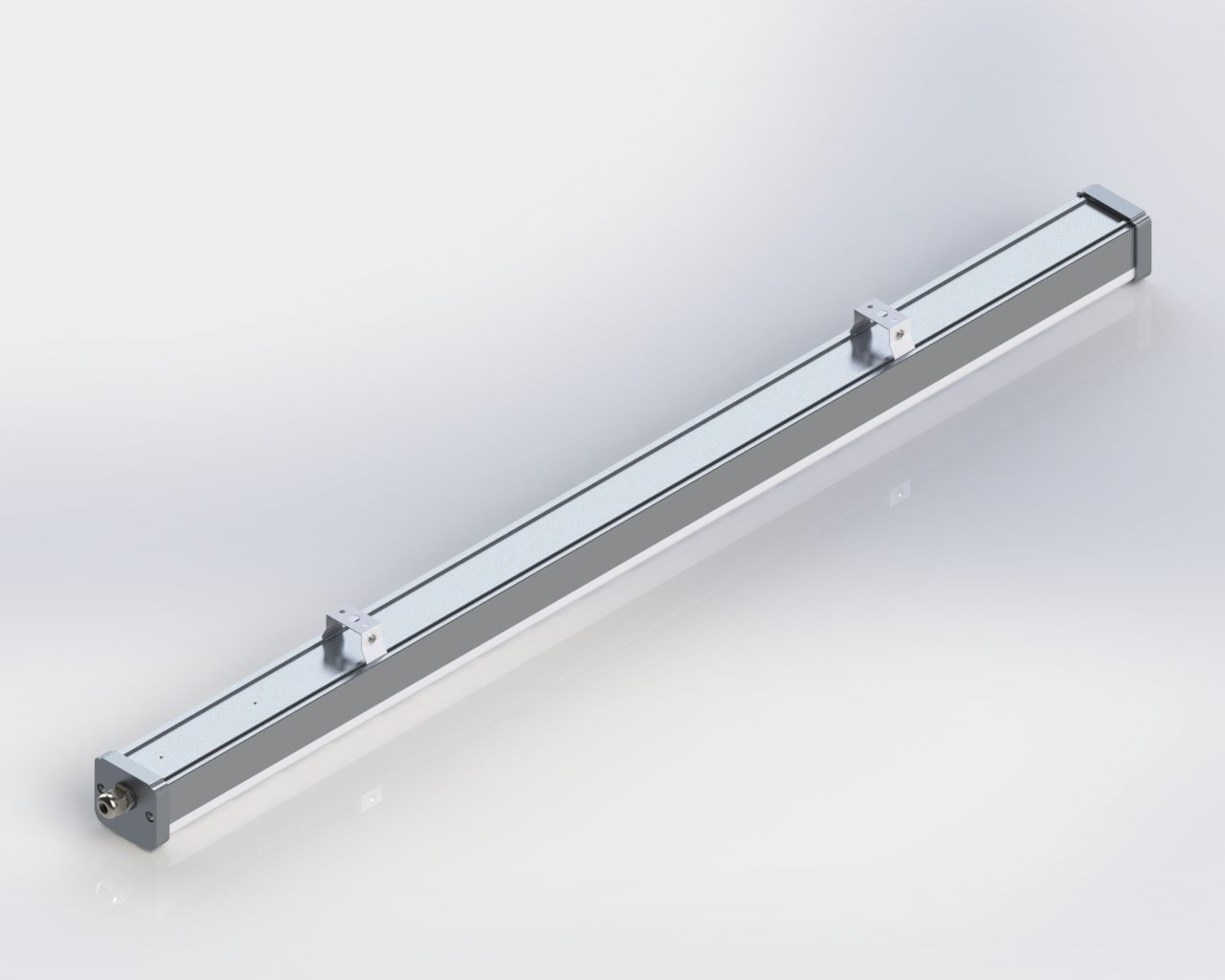

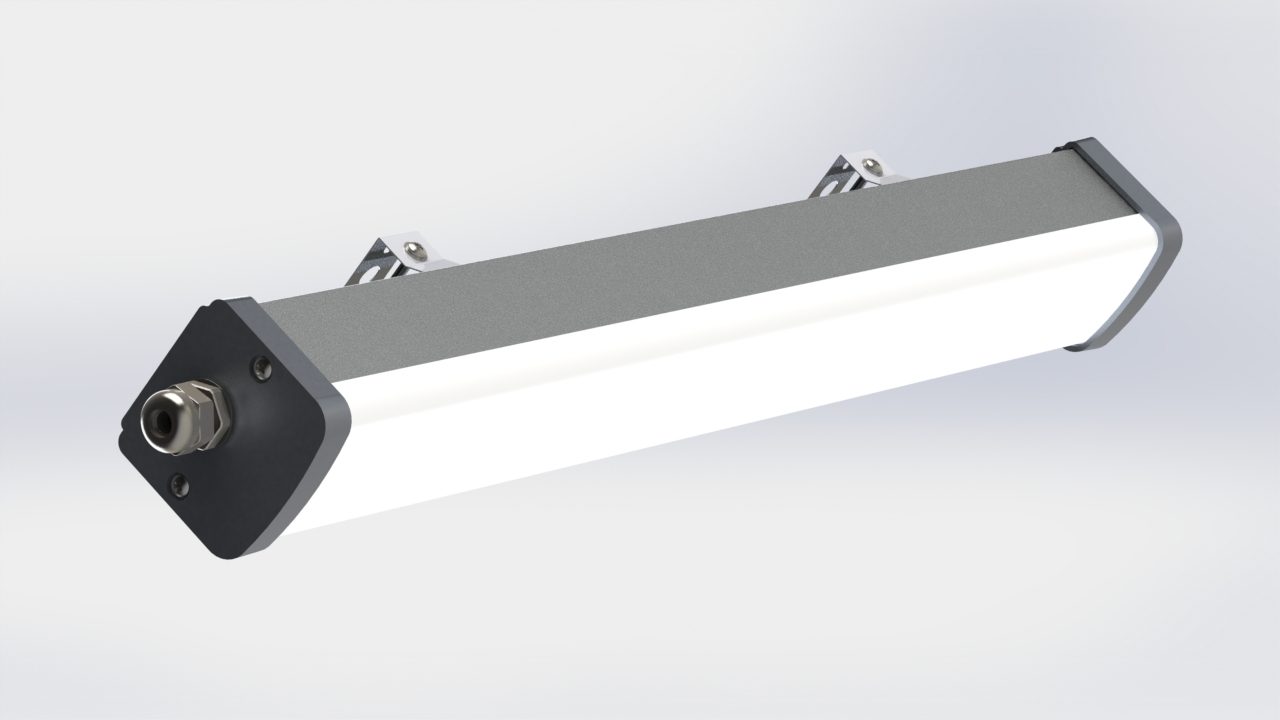

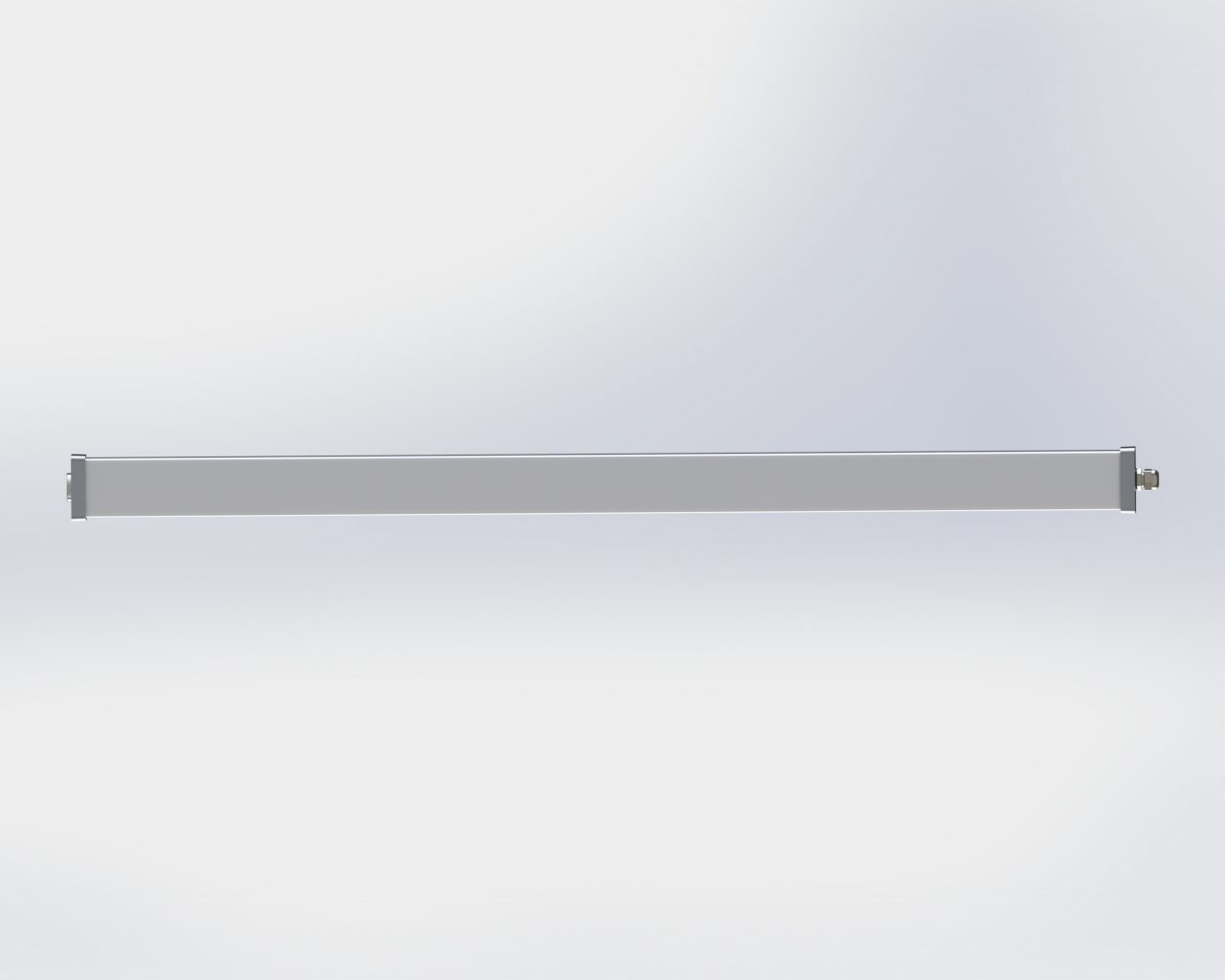

    LED HARSH ENVIRONMENT LINEAR LIGHT (HEL01)

    Up to 20W (2 Ft) and 90W (4 Ft)
    Efficacy up to 145 lm/W
    Lumen package from 2,893 to 12,186 lumens
    20W/40W/50W/65W/90W
    Harsh Environment, IP66 Rated

    Inquire
    Category:

    Description

    • Extruded Aluminum alloy body with superior heat transfer
    • Robust design for harsh environments, IP 66 rated
    • Slim and compact design for ease of installation in limited spaces
    • IP66 rated for dust and wet locations
    • Polycarbonate lens designed for shock and anti-vibration
    • Advanced optical system, provides superior uniformity and reduces glare
    • Lumen package from 2,893 to 12,186 lumens
    • Offering 120° beam angle
    • Input power ranging from 20W to 90W
    • Operating voltage is 100-277 VAC
    • Power Factor >95%, THD <15%
    • Operating temperature is -40℃ to 40℃ (-40℉ to 104℉)
    • Surface mount is standard; cable tray and pipe support optional
    • Extruded aluminum alloy with frosted polycarbonate diffuser
    • UL Listed – 1598
    • Canada: CSA C22.2, No. 250
    • Standard 5-Year Limited Warranty

    Reviews

    There are no reviews yet.

    Be the first to review “LED HARSH ENVIRONMENT LINEAR LIGHT (HEL01)”

    Your email address will not be published. Required fields are marked *

    33 + = 37

    Downloads

    Specification
