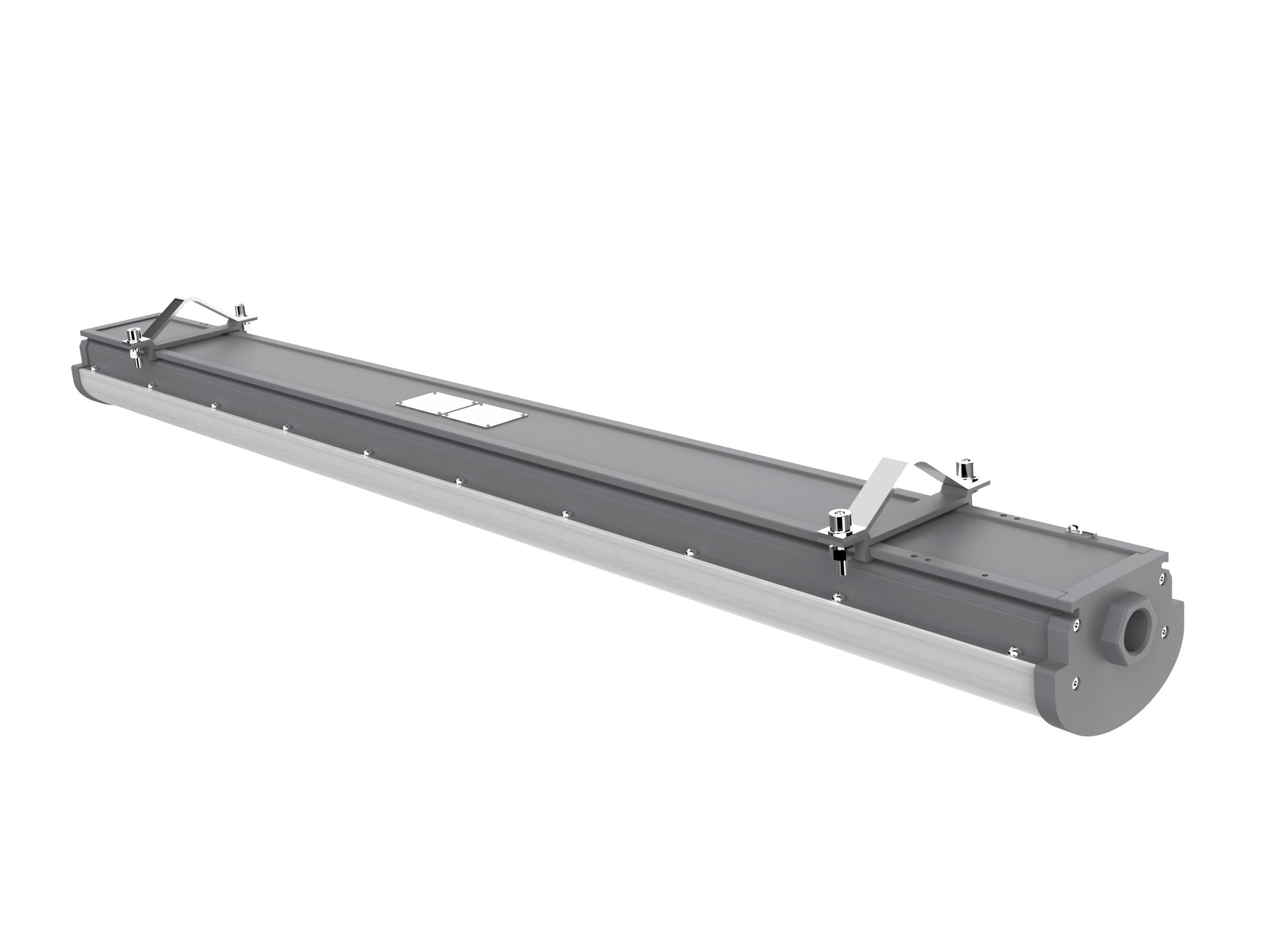

  • Picture CES-EX-LN-02P (Pole Mounting 0.6m)Picture CES-EX-LN-02P (Pole Mounting 0.6m)

    LED HAZLOC LINEAR LIGHT (HLL01)

    Efficacy up to 140 lm/W
    Lumen package up to 9600 lumens
    30W/ 40W/50W/ 65W/75W
    HazLoc CL1/D2/GRP A,B,C,D

    Inquire
    Category:

    Description

    • ADC12 and 6063 Aluminum alloy body with corrosion resistance coating
    • Robust design for harsh environment and explosion proof applications
    • IP66 rated for wet locations, marine duty
    • Polycarbonate lens designed for corrosion, shock and anti-vibration applications
    • Independent LED and Driver chambers for enhanced heat dissipation
    • Efficacy up to 140 lm/W and lumens up to 9600 lumens
    • Offering 120° beam angle
    • CCT from 3000K to 6500K
    • Input power ranging from 30W to 75W
    • Operating voltage is 100-277VAC
    • Power Factor >95%, THD <10%
    • Operating temperature is -40℃ to 50℃ (-40℉ to 122℉)

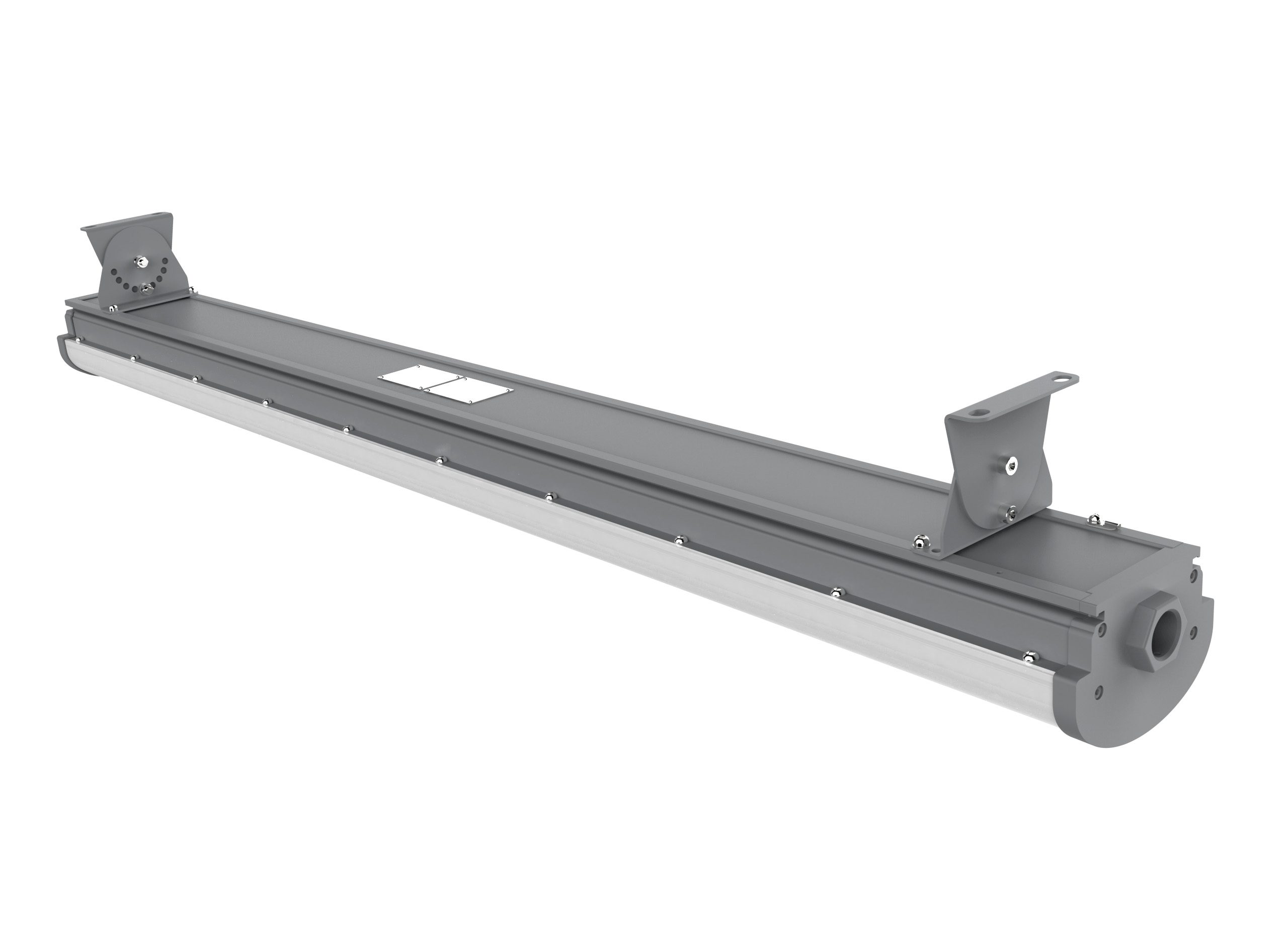

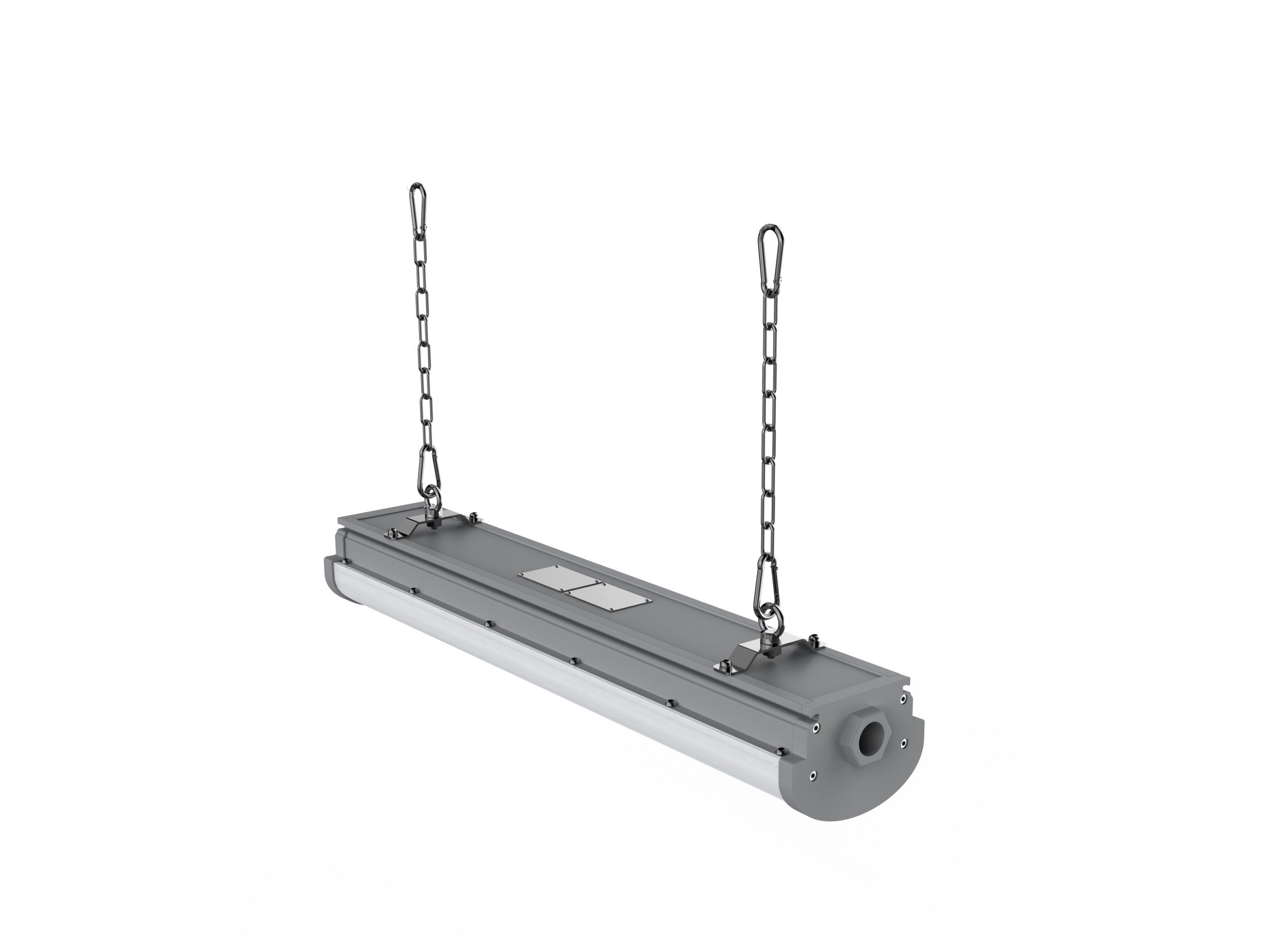

    • Flush surface, ceiling chain pendant and adjustable wall mounting options
    • Electrostatic powder coat gray paint is standard, other colors are optional
    • UL Listed – UL 844 Hazardous Location; UL1598 Marine Duty
    • Standard 5-Year Limited Warranty
