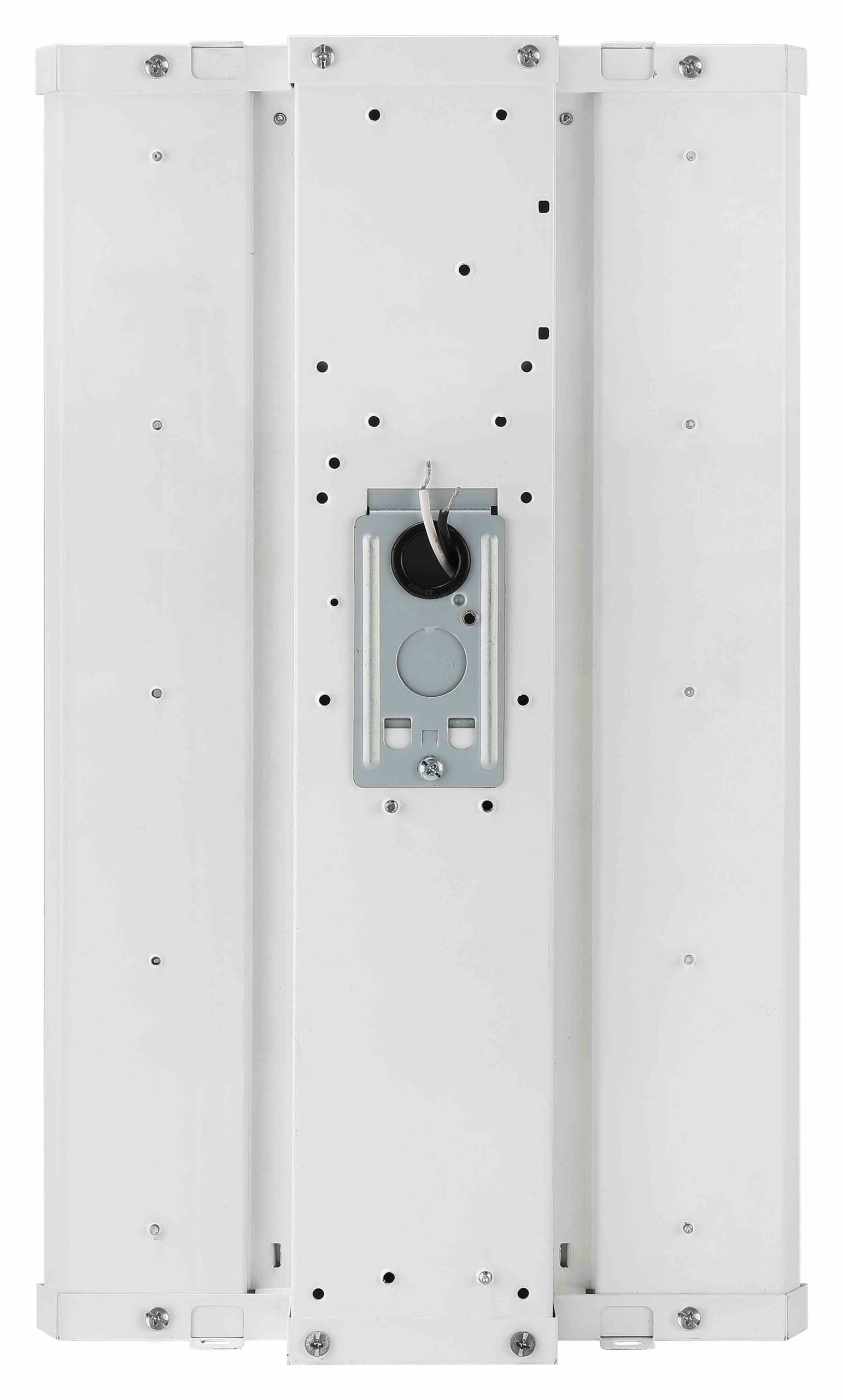

  • LHB06 90W 130W-BackLHB06 90W 130W-Back

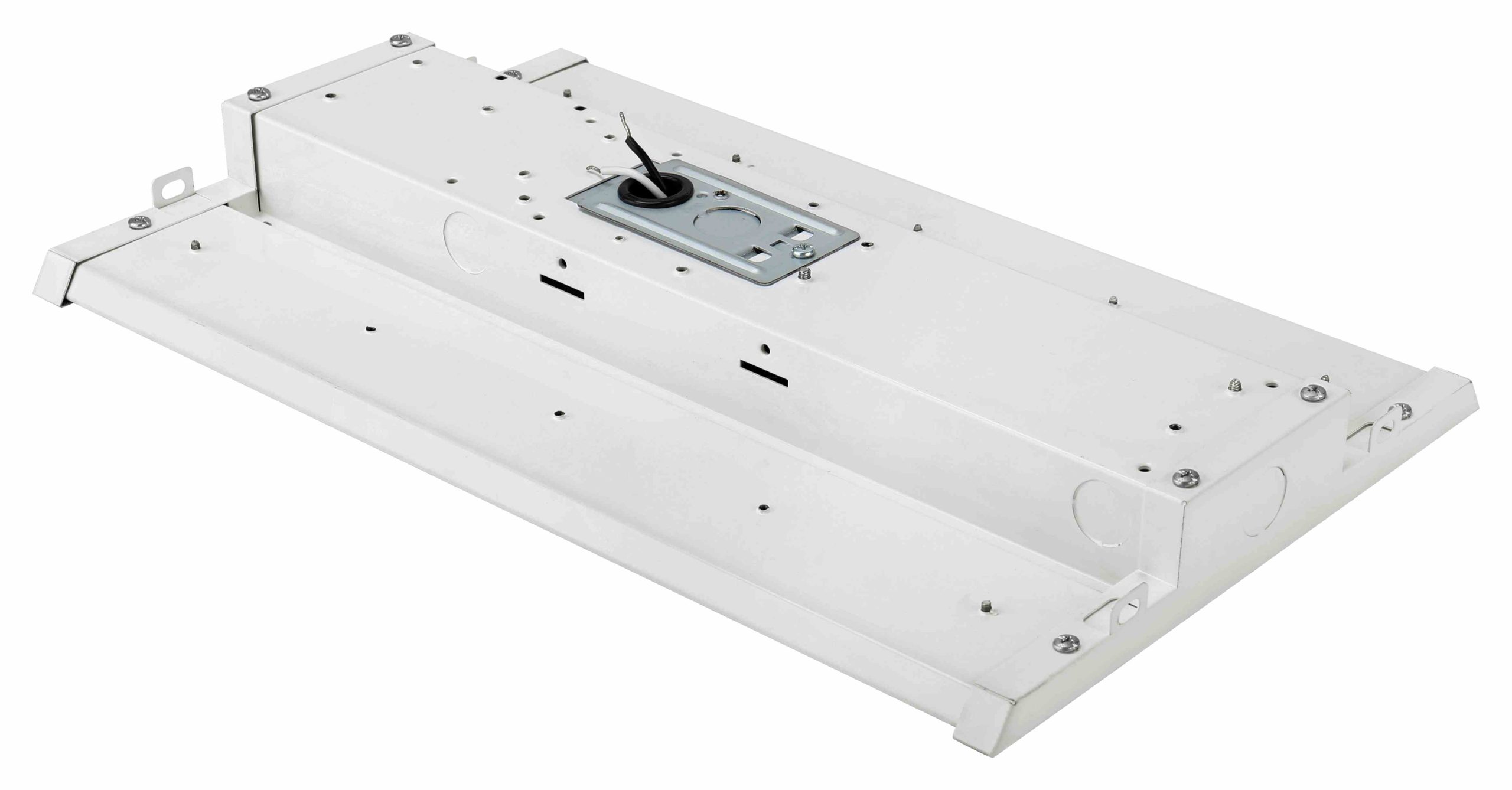

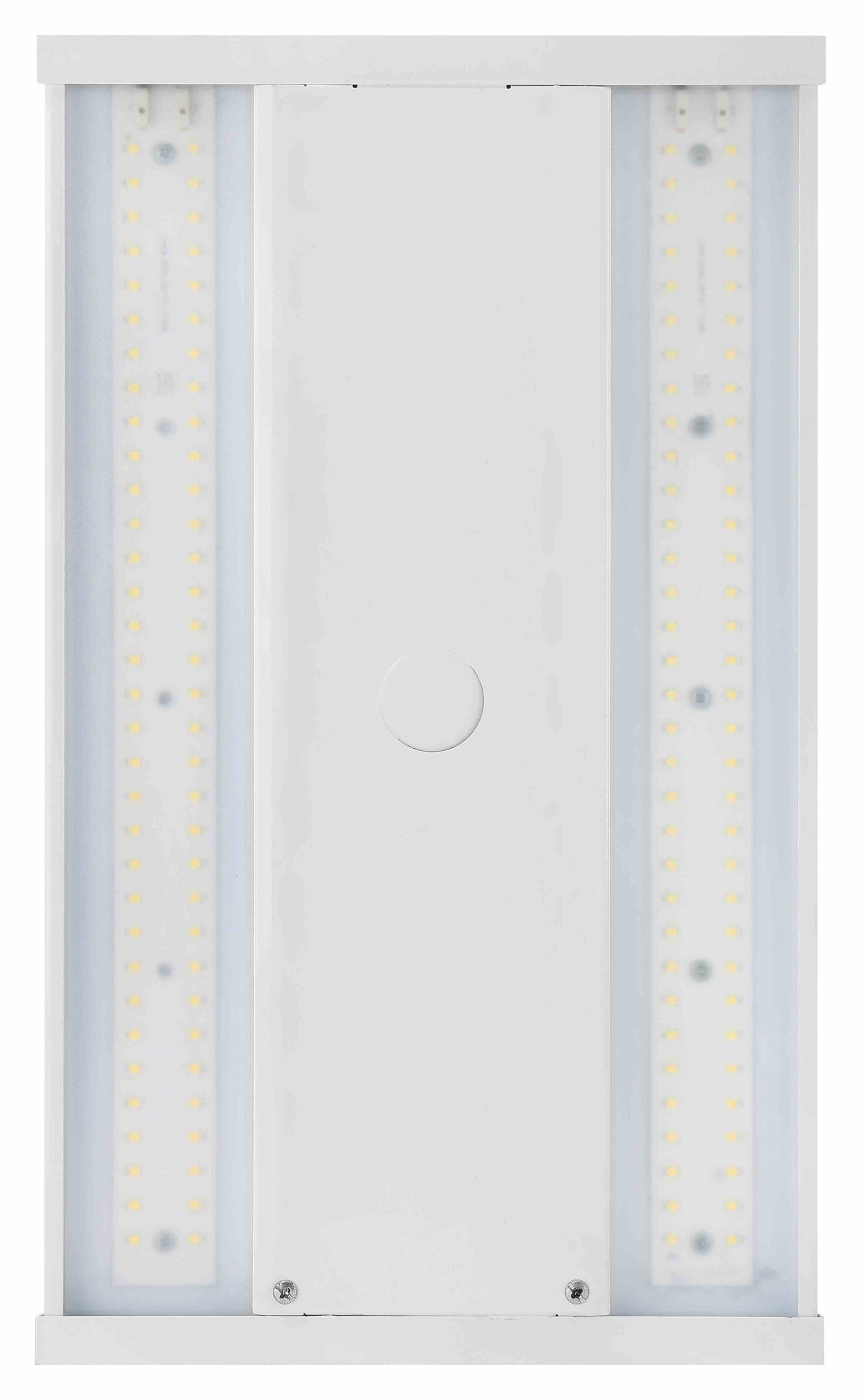

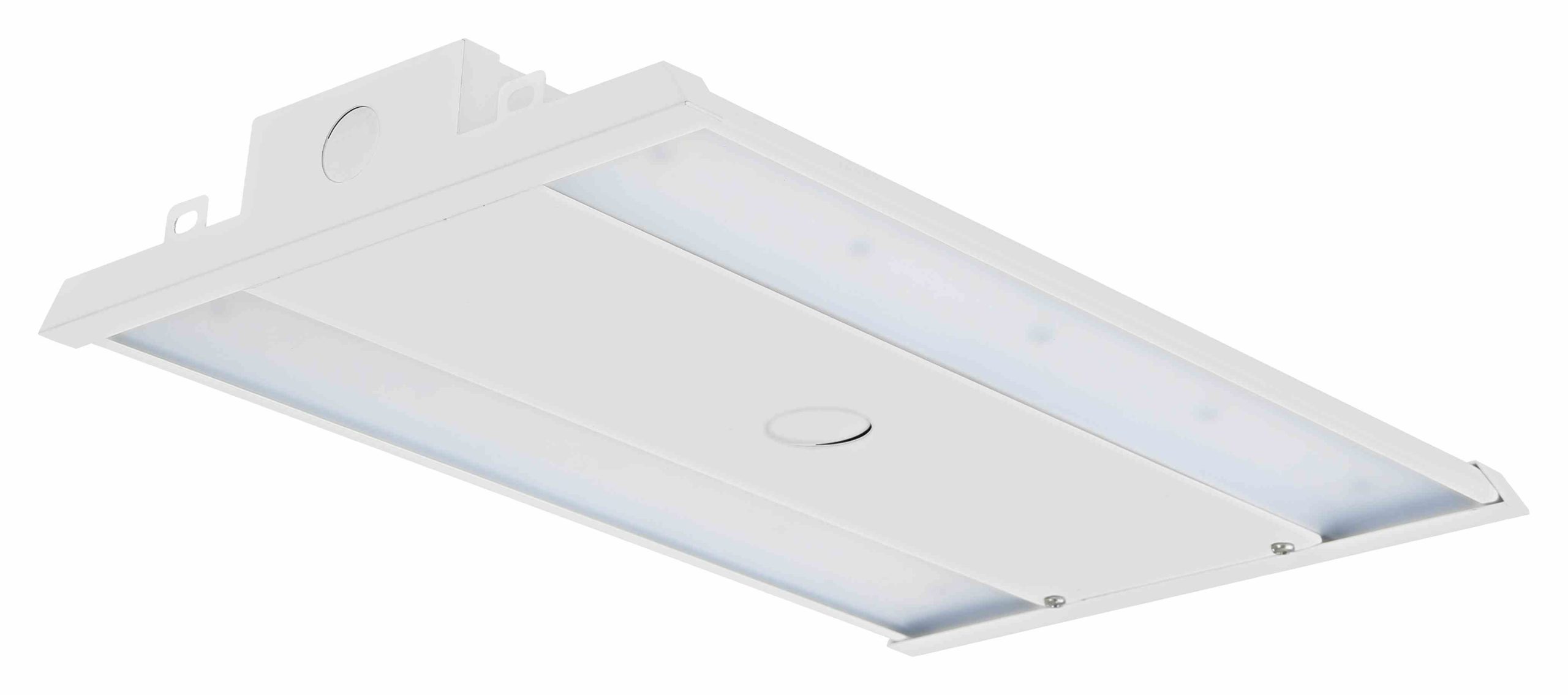

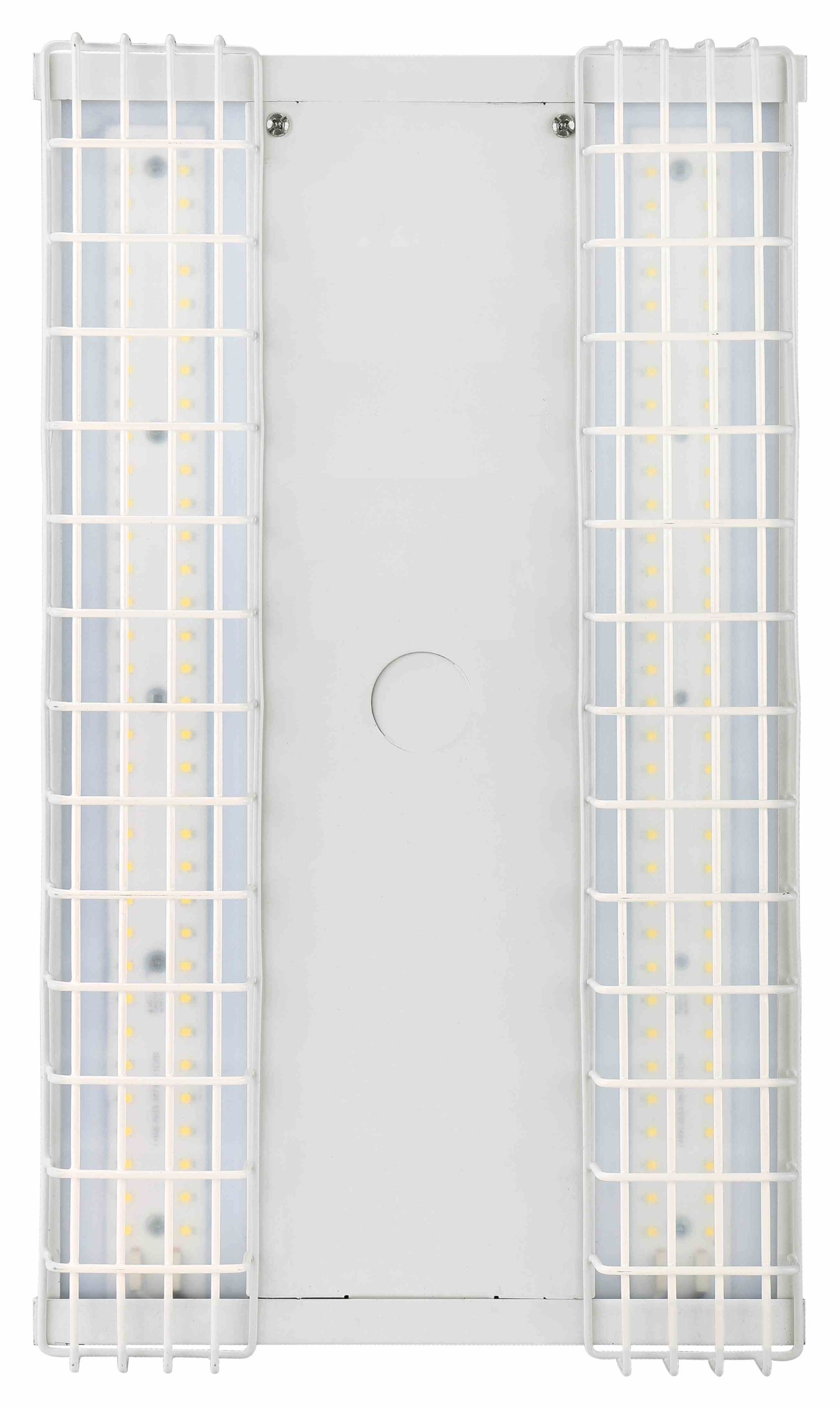

    LHB06 LED Linear High Bay

    Wattage 90W to 300W, 210W and 225W Selectable Wattage Optional (100%,80%,60%,40%)

    • Wattage 90W to 300
    • 210W and 225W Selectable Wattage
    • CCT Adjustable (3000K/4000K)

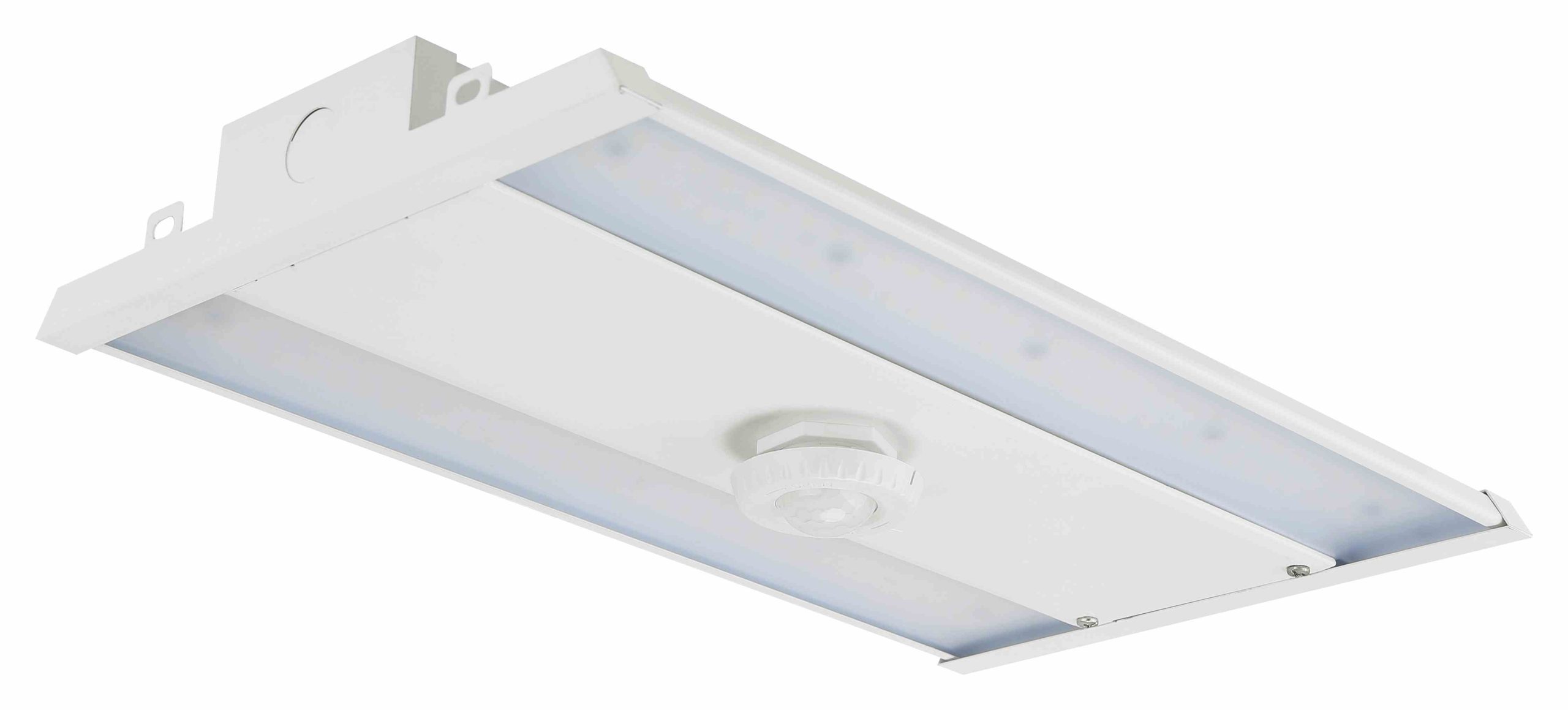

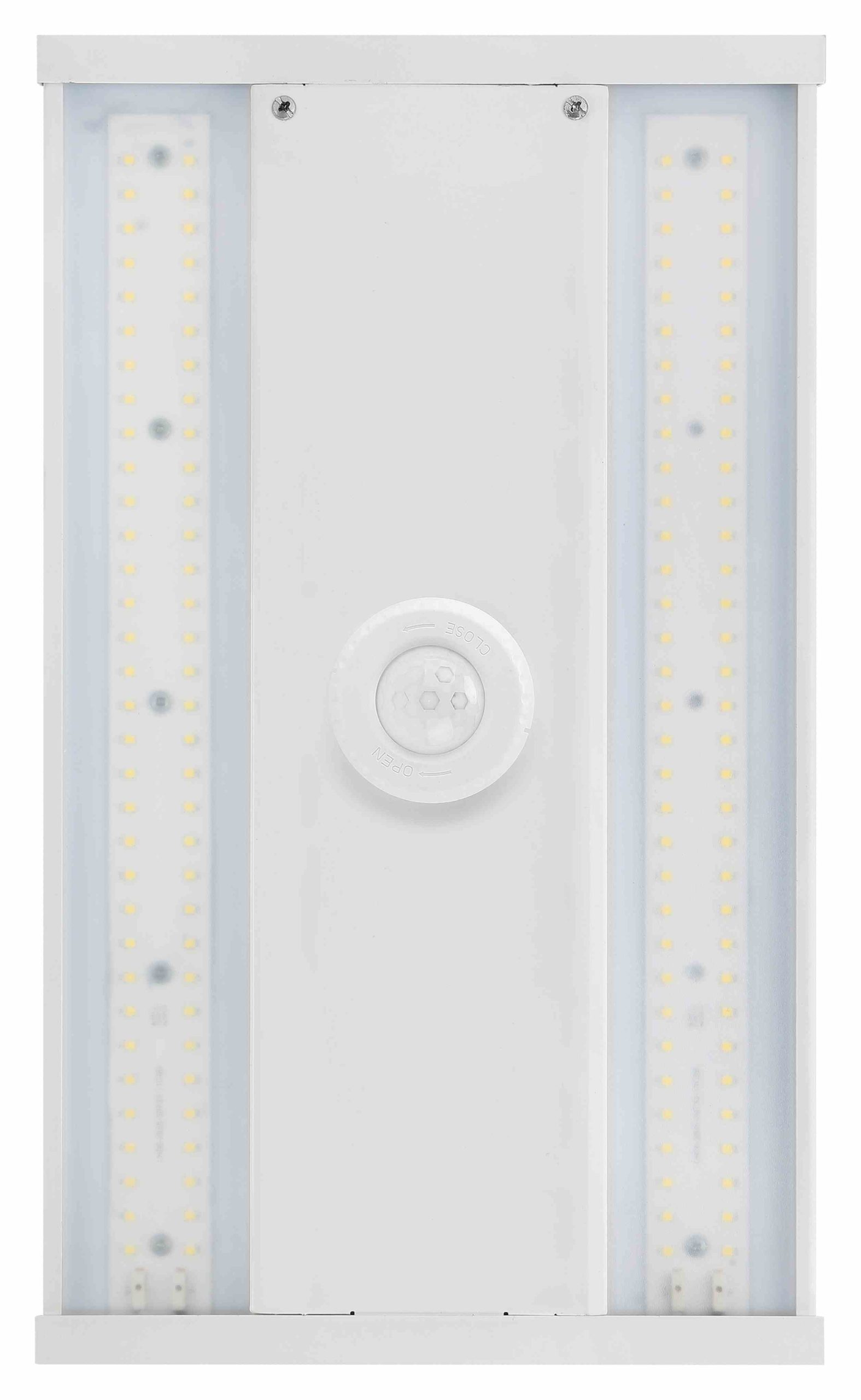

    • PIR Sensor Optional
    • Emergency Battery Optional
    Categories: ,


    • LHB06
    • Fixed CCT (4000K/5000K) and Selectable CCT optional on 210W and 225W Models
    • Cold-rolled steel plate corrosion-resistant housing
    • Ultra-Compact, sturdy design saves on freight cost and space
    • Superior light distribution and uniformity
    • Lumen output from 11,700 to 39,000 Lumens with efficacy up to 158lm/W
    • Prismatic diffuser for maximum glare reduction
    • Semi-frosted Diffuser for maximum lumen output
    • The aisle optics promotes excellent vertical illumination for warehouse applications
    • Universal 120-277 VAC or 347/480 VAC input voltage
    • 0-10V Dimming, down to 10%
    • 6KV Surge Protection Optional
    • Operating temperature is -40°C to 50°C(-40°F to 122°F).
    • Note: Operating with emergency battery temperature range:  0°C to 50°C (+32°F- +122°F)
    • Steel wire rope mount (default), Pendant and Surface Optional
    • Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
    • Five-year limited warranty
