Description

• One-piece die-cast aluminum housing features a robust quality and performance
• The LED module and driver are separated and extends service life through convection cooling and thermal management
• The compact design saves labor cost and improves installation efficiency
• Selectable CCT (4000K/5000K)
• Lumen Output from 12,100 to 61,000 Lumens, up to 171 lm/W
• Prismatic translucent lens is designed to improve the light uniformity and controls the glare
• Universal 120-277VAC or 347-480VAC input voltage
• Selectable Wattage (100%, 80%, 60%, 40%)
• 0-10V dimming standard for a dimming range of 100% to 10%
• PF >90%, THD <20%, 6KV surge protection
• Operating Temperature Range: -40°C to 50°C (-40˚F – + 122˚F)
• Note: Operating with emergency battery temperature range: 5°C to 50°C (+41˚F – + 122˚F)

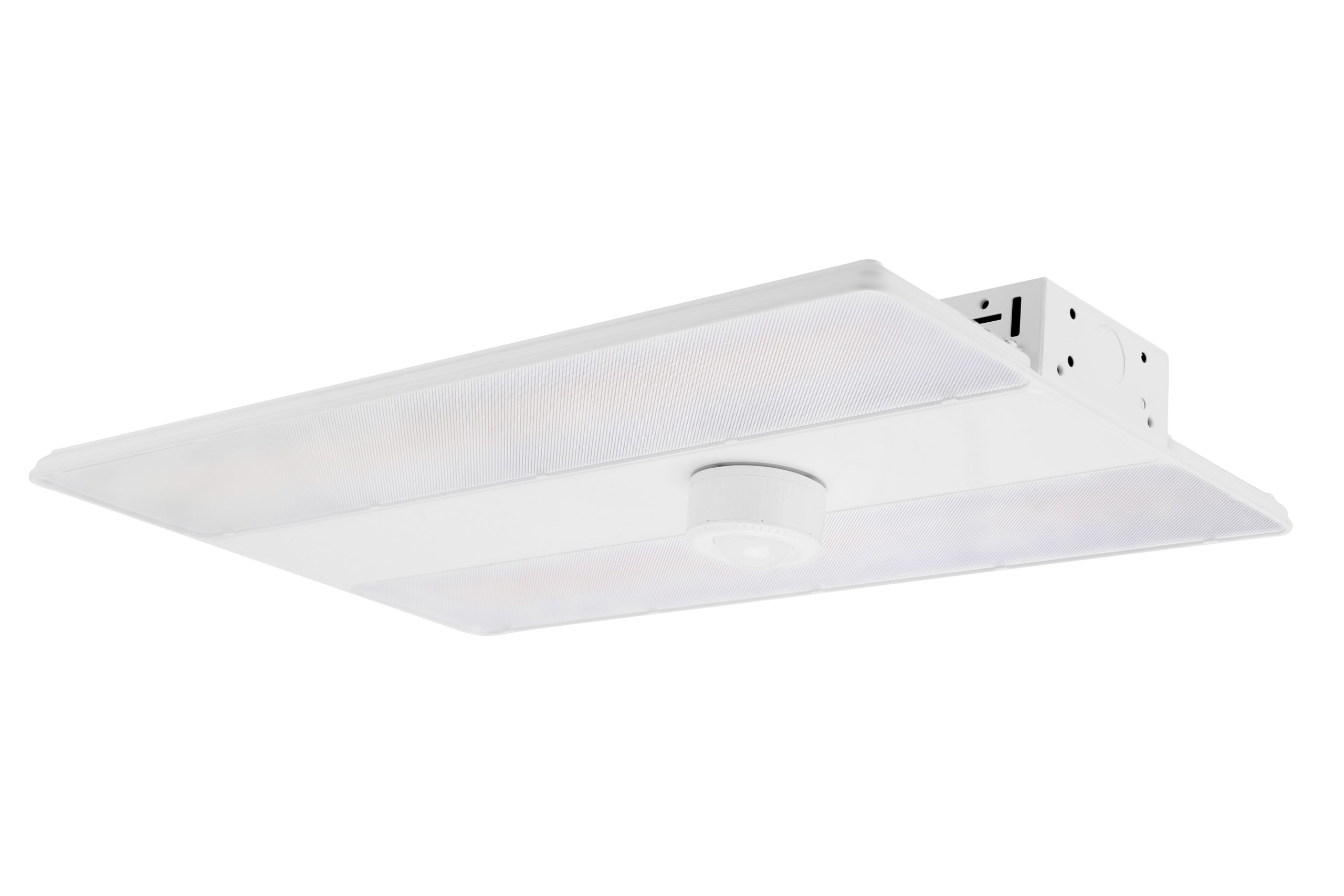

• Optional PIR Sensor or Bluetooth Smart Control Sensor available for further energy-saving
• Integral sensor receptacle included, can quickly install sensors on site

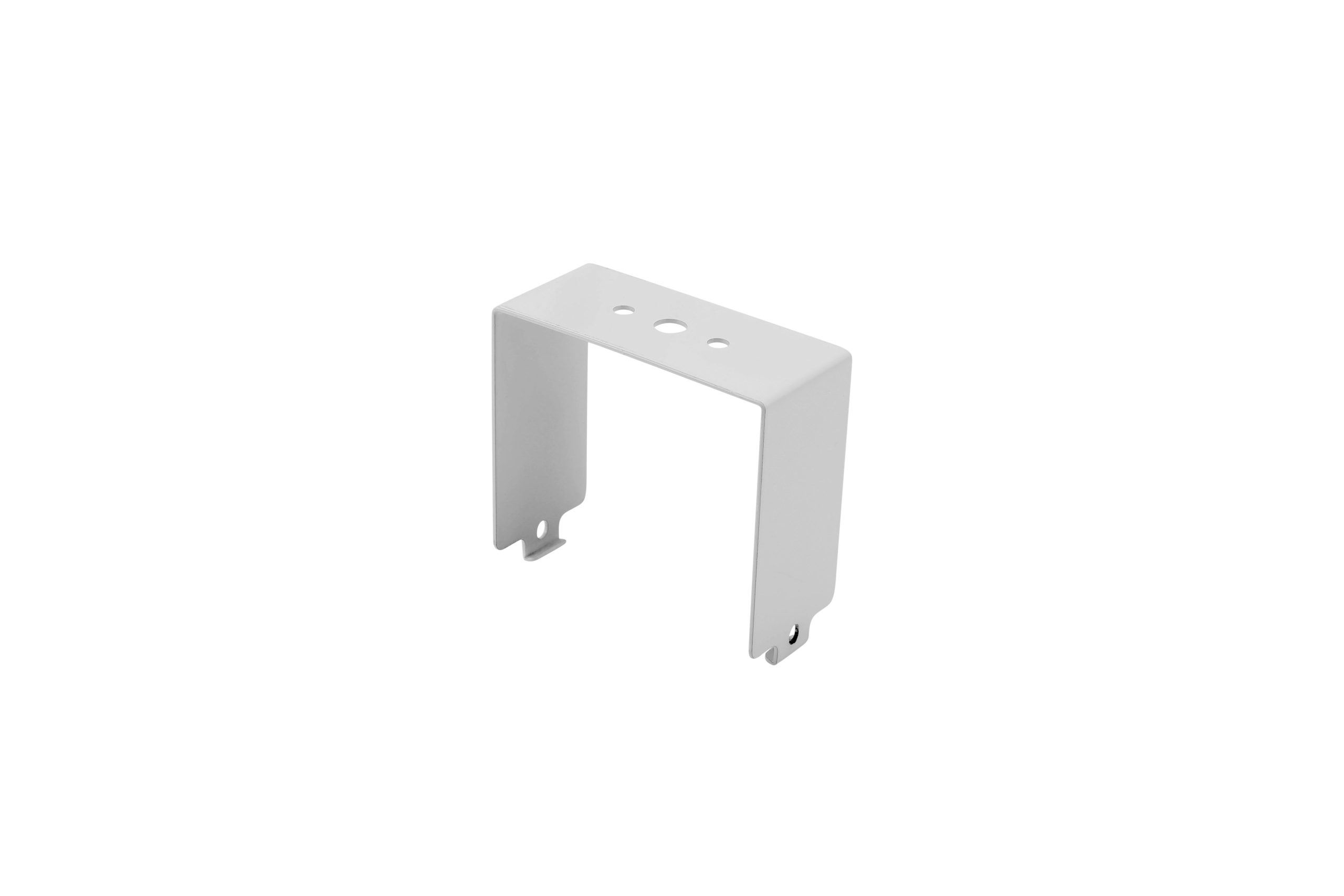

• Steel wire rope mount (default), Pendant and Surface Optional
• Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculation
• Five-year limited warranty
