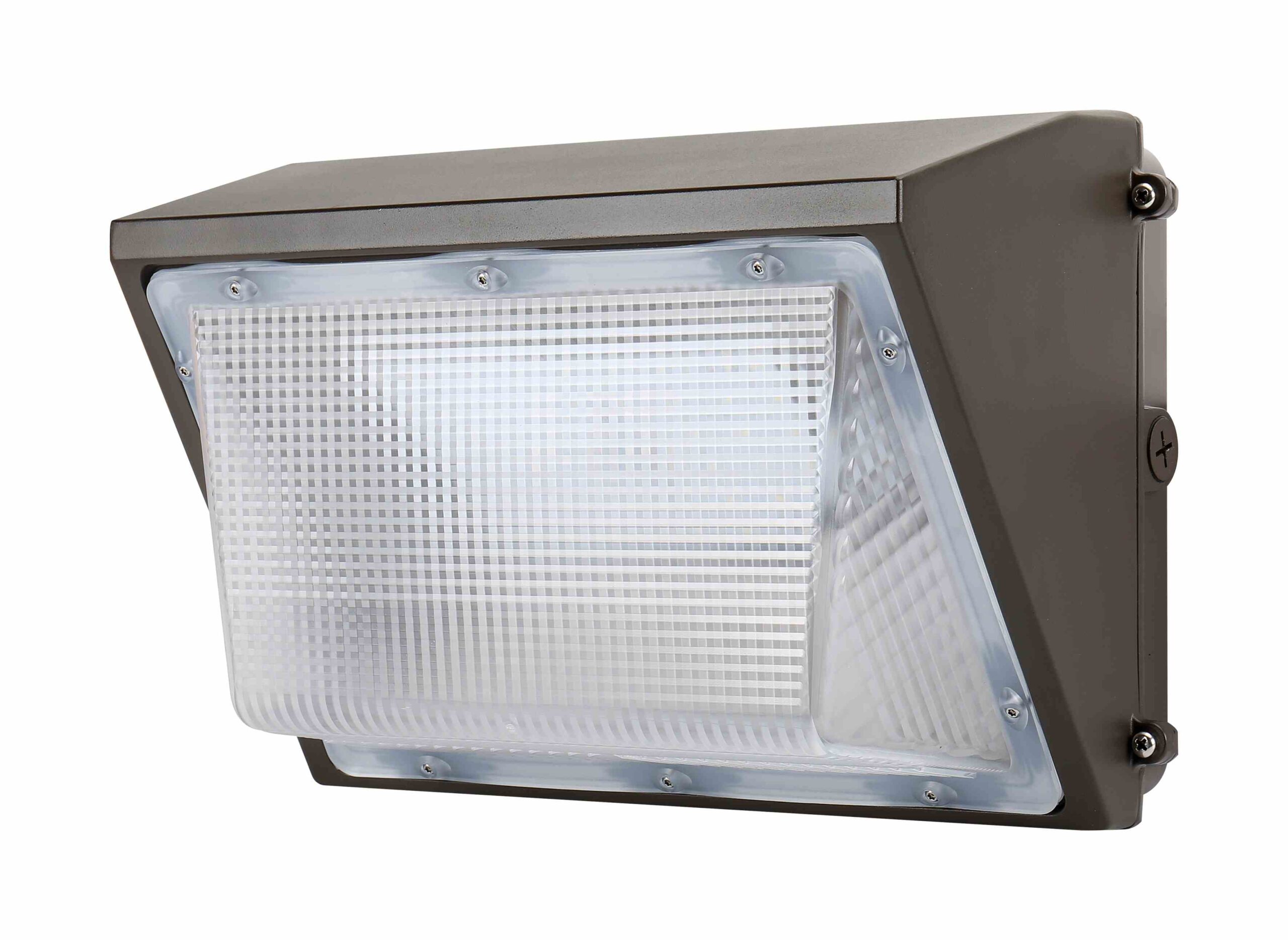

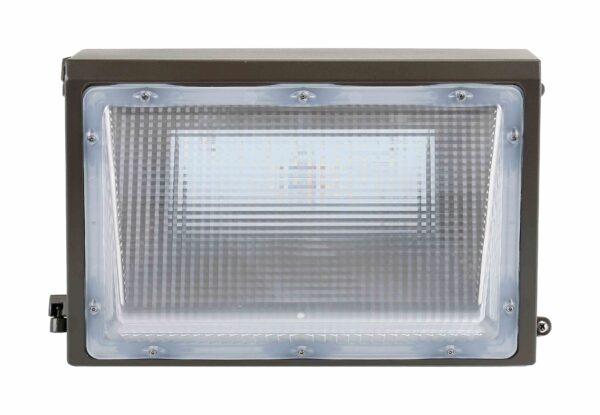

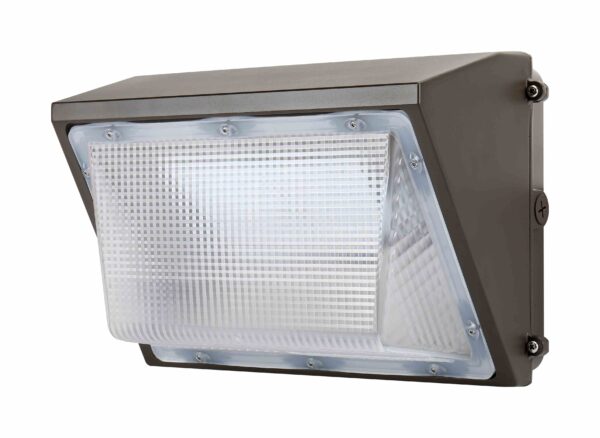

    LED Wall Pack (WP08)

    30W, 40W, 65W, 90W, 100W, 125W
    65W and 100W Selectable CCT and Wattage
    65W and 100W Adjustable Light Output
    Photocell and Emergency
    Battery optional

    Inquire
    Categories: ,

    Description

    • Offers wattages ranging from 30W to 125W
    • Sealed die-cast aluminum housing suitable for outdoor applications
    • Aluminum housing enhances LED thermal heat transfer to optimize performance and reliability
    • Suitable for applications requiring 3G testing as prescribed by ANSI C136.31
    • Single CCT 4000K and 5000K are standard for all wattages
    • Only the 65W and 100W offer selectable CCT and Wattage.
    • Lumen packages from 3,400 to 15,000 Lumens
    • UV stabilized polycarbonate and glass optic lens are optional, as the prismatic design promotes superior light distribution and uniformity
    • Universal 120-277 VAC input voltage
    • Power Factor>90%, THD <20%
    • Operating temperature range: -40°C TO 40°C (-40°F to 104°F)
    • Photocell and emergency battery are optional
    • Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
    • UL wet location listed
