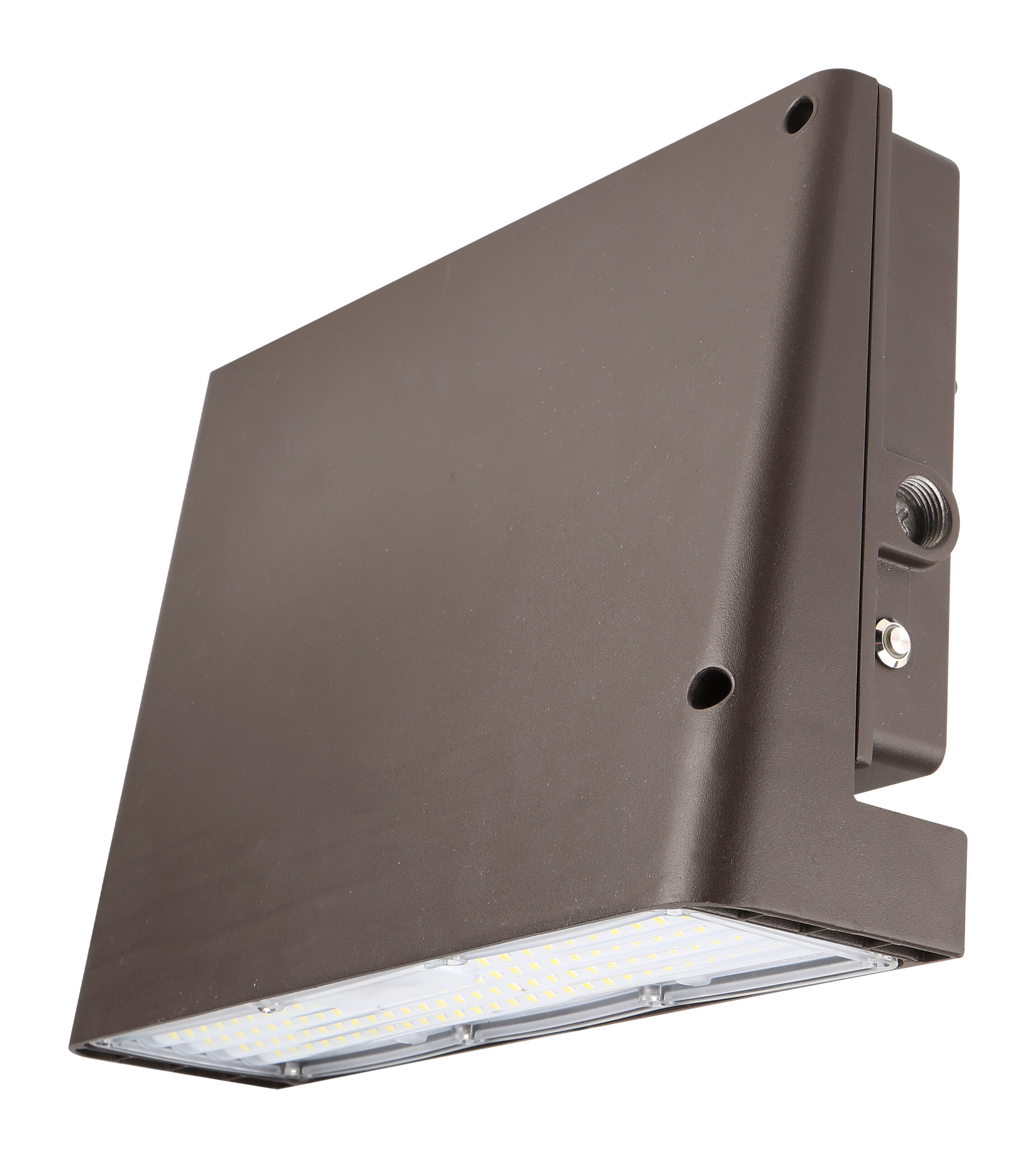

  • MWP15-Battery-Side 01MWP15-Battery-Side 01

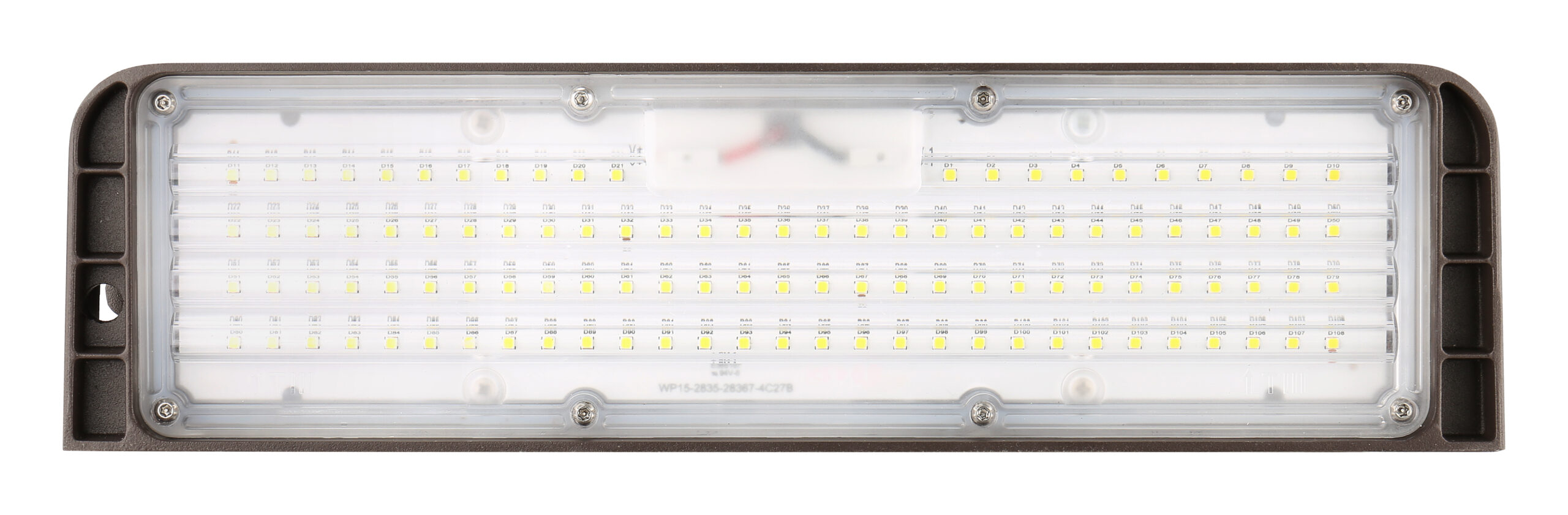

    LED Wall Pack (WP15)

    26W, 38W, 68W, 100W, 135W
    Photocell and Emergency
    Battery optional

    Inquire
    Categories: ,

    Description

    • Offers wattages ranging from 26W to 135W
    • Two-piece sealed die-cast aluminum housing suitable for outdoor applications
    • Aluminum housing enhances LED thermal heat transfer to optimize performance and long life
    • Suitable for applications requiring 3G testing as prescribed by ANSI C136.31
    • The 135W is available in standard CCT of 3000K, 4000K and 5000K only
    • The 26W to 100W offers selectable CCT and Wattage
    • Lumen packages from 3,800 to 20,000 Lumens
    • Designed for zero up light distribution
    • Anti-UV prismatic translucent lens is designed to promote superior light distribution and uniformity
    • Universal 120-277 VAC input voltage
    • 1-10V Dimming is optional
    • Power Factor>90%, THD <20%
    • Operating Temperature Range: -40°C TO 40°C (-40°F to 104°F)
    • Emergency Battery Operating Temperature: 10°C TO 40°C (+50°F to 104°F)
    • Photocell and emergency battery are optional
    • Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
    • UL wet location listed
